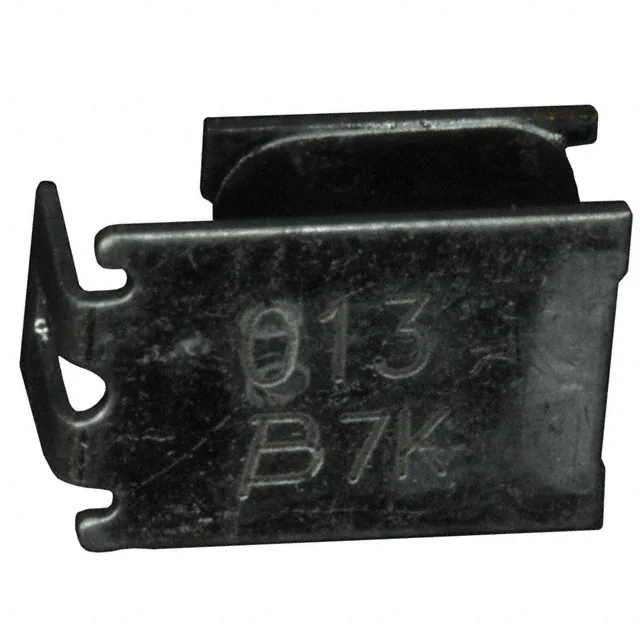

| Part Number | MF-SM013/250-2 | MF-SM013/250V-2 | MF-SD013/250-2 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 60V (250V Int) | 60V (250V Int) | 60V (250V Int) |
| Current - Max | 3 A | 3 A | 3 A |
| Current - Hold (Ih) (Max) | 130 mA | 130 mA | 130 mA |
| Current - Trip (It) | - | - | 260 mA |
| Time to Trip | - | - | 2.5 s |
| Resistance - Initial (Ri) (Min) | 6.5 Ohms | 4 Ohms | 2 Ohms |
| Resistance - Post Trip (R1) (Max) | 20 Ohms | 16 Ohms | 10 Ohms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -45°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD | 2-SMD | 4-SMD Cube |
| Size / Dimension | 0.350" L x 0.283" W (8.90mm x 7.20mm) | 0.350" L x 0.283" W (8.90mm x 7.20mm) | 0.350" L x 0.283" W (8.90mm x 7.20mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.402" (10.20mm) | 0.402" (10.20mm) | 0.402" (10.20mm) |
| Lead Spacing | - | - | - |
