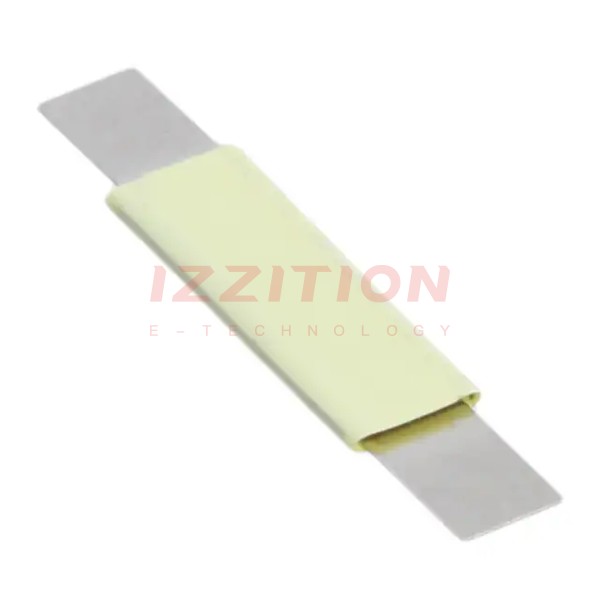

| Part Number | MF-S120S | MF-S150S | MF-S120 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 15V | 15V | 15V |
| Current - Max | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 1.2 A | 1.5 A | 1.2 A |
| Current - Trip (It) | 2.7 A | 3 A | 2.7 A |
| Time to Trip | 5 s | 5 s | 5 s |
| Resistance - Initial (Ri) (Min) | 85 mOhms | 50 mOhms | 85 mOhms |
| Resistance - Post Trip (R1) (Max) | 220 mOhms | 113 mOhms | 220 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | User Defined | User Defined | User Defined |
| Package / Case | Strap | Strap | Strap |
| Size / Dimension | 0.827" L x 0.199" W (21.00mm x 5.05mm) | 0.880" L x 0.417" W (22.35mm x 10.60mm) | 0.827" L x 0.199" W (21.00mm x 5.05mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.039" (1.00mm) | 0.043" (1.10mm) | 0.039" (1.00mm) |
| Lead Spacing | - | - | - |
