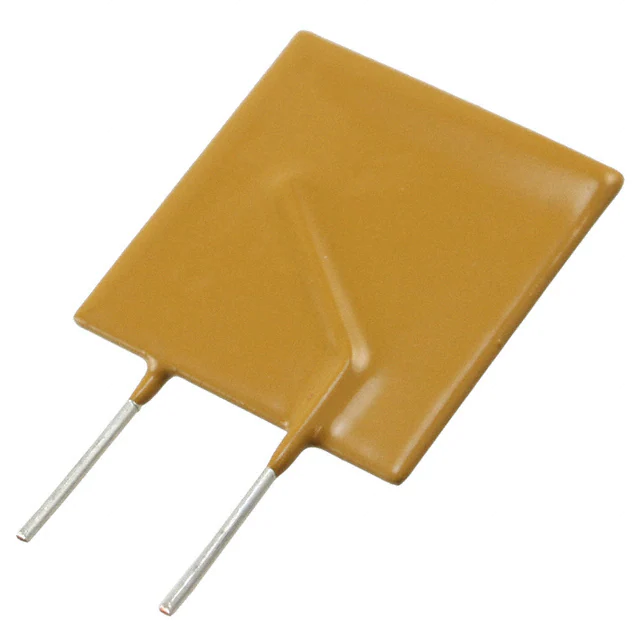

| Part Number | MF-RX375/72-2 | MF-RX075/72-2 | MF-RX375/72-0 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | - | Polymeric |
| Voltage - Max | 72V | 72V | 72V |
| Current - Max | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 3.75 A | 750 mA | 3.75 A |
| Current - Trip (It) | 7.5 A | 1.5 A | 7.5 A |
| Time to Trip | 24 s | 6.3 s | 24 s |
| Resistance - Initial (Ri) (Min) | 30 mOhms | - | 30 mOhms |
| Resistance - Post Trip (R1) (Max) | 80 mOhms | - | 80 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | - | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.926" L x 0.122" W (23.51mm x 3.10mm) | 0.409" Dia x 0.122" W (10.40mm x 3.10mm) | 0.926" L x 0.122" W (23.51mm x 3.10mm) |
| Height - Seated (Max) | 1.161" (29.50mm) | 0.630" (16.00mm) | 1.161" (29.50mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.402" (10.20mm) | 0.201" (5.10mm) | 0.402" (10.20mm) |
