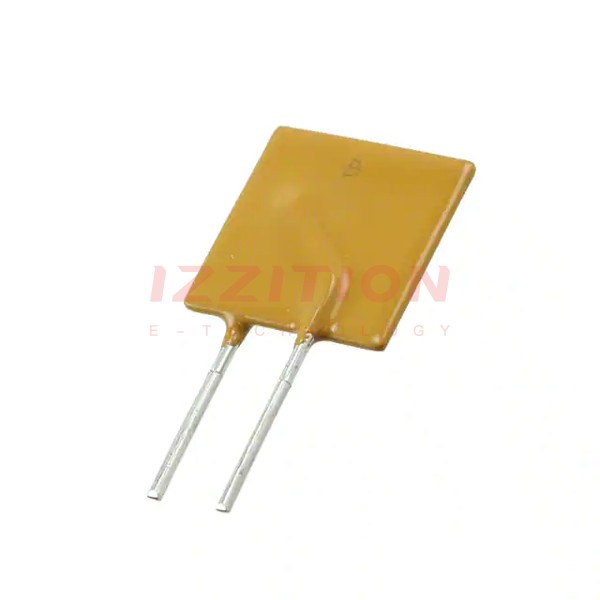

| Part Number | MF-RX160/72-0-14 | MF-RX110/72-0-14 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Voltage - Max | 72V | 72V |
| Current - Max | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 1.6 A | 1.1 A |
| Current - Trip (It) | 3.2 A | 2.2 A |
| Time to Trip | 11.4 s | 8.2 s |
| Resistance - Initial (Ri) (Min) | - | - |
| Resistance - Post Trip (R1) (Max) | - | - |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | - | - |
| Ratings | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.642" L x 0.122" W (16.30mm x 3.10mm) | 0.427" L x 0.122" W (10.84mm x 3.10mm) |
| Height - Seated (Max) | 0.839" (21.30mm) | 0.662" (16.84mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.201" (5.10mm) | 0.201" (5.10mm) |
