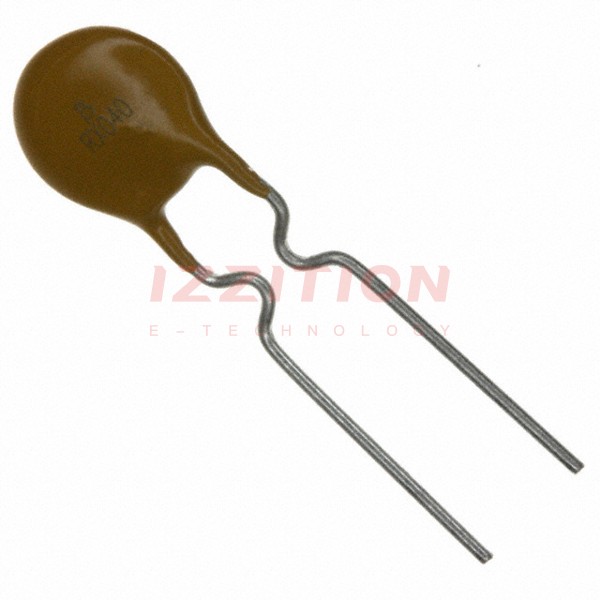

| Part Number | MF-RX025/72-0 | MF-RX065/72-0 | MF-RX075/72-0 | MF-RX025/72-2 | MF-RX020/72-0 |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | - | Polymeric |
| Voltage - Max | 72V | 72V | 72V | 72V | 72V |
| Current - Max | 40 A | 40 A | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 250 mA | 650 mA | 750 mA | 250 mA | 200 mA |
| Current - Trip (It) | 500 mA | 1.3 A | 1.5 A | 500 mA | 400 mA |
| Time to Trip | 2.5 s | 5.3 s | 6.3 s | 2.5 s | 2.2 s |
| Resistance - Initial (Ri) (Min) | 1 Ohms | 270 mOhms | 180 mOhms | - | 1.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 3 Ohms | 720 mOhms | 600 mOhms | - | 4.4 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - | -40°C ~ 85°C |
| Ratings | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.291" Dia x 0.122" W (7.40mm x 3.10mm) | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | 0.598" (15.20mm) | 0.630" (16.00mm) | 0.500" (12.70mm) | 0.500" (12.70mm) |
| Thickness (Max) | - | - | - | - | - |
| Lead Spacing | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) |
