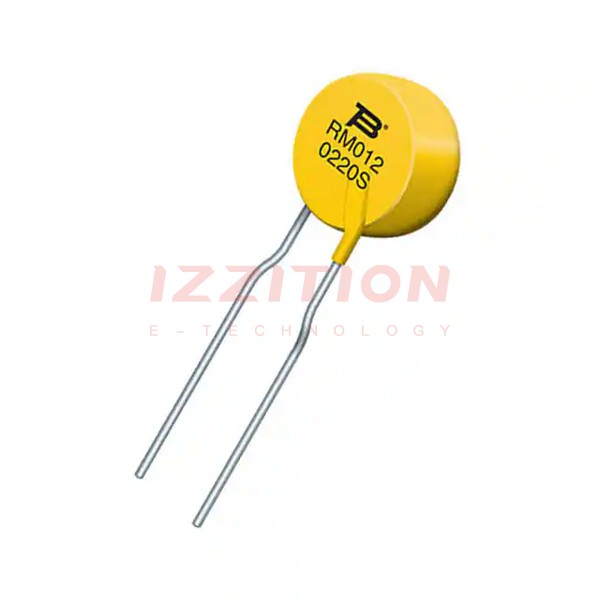

| Part Number | MF-RM012/240-0 | MF-RM012/240-2 | MF-RM016/240-0 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 240V (265V Int) | 240V (265V Int) | 240V (265V Int) |
| Current - Max | 1.2 A | 1.2 A | 2 A |
| Current - Hold (Ih) (Max) | 120 mA | 120 mA | 160 mA |
| Current - Trip (It) | 300 mA | 300 mA | 370 mA |
| Time to Trip | 15 s | 15 s | 15 s |
| Resistance - Initial (Ri) (Min) | 3 Ohms | 3 Ohms | 2.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 12 Ohms | 12 Ohms | 7.8 Ohms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.390" Dia x 0.150" T (9.90mm x 3.80mm) |
| Height - Seated (Max) | 0.508" (12.90mm) | 0.508" (12.90mm) | 0.543" (13.80mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.114" (2.90mm) | 0.114" (2.90mm) | 0.114" (2.90mm) |
