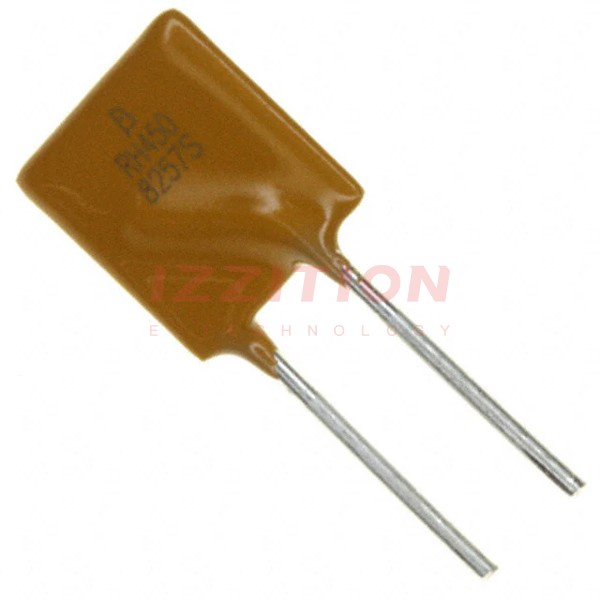

| Part Number | MF-RHT450-0 | MF-RHT750-0 | MF-RHT550-0 | MF-RHT650-0 | MF-RHT450-2 | MF-RHT050-0 | MF-RHT400-0 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 16V | 16V | 16V | 30V | 16V |
| Current - Max | 100 A | 100 A | 100 A | 100 A | 100 A | 40 A | 100 A |
| Current - Hold (Ih) (Max) | 4.5 A | 7.5 A | 5.5 A | 6.5 A | 4.5 A | 500 mA | 4 A |
| Current - Trip (It) | 7.8 A | 13.1 A | 10 A | 12 A | 7.8 A | 920 mA | 7.5 A |
| Time to Trip | 3 s | 7 s | 6 s | 5.5 s | 3 s | 2.5 s | 5 s |
| Resistance - Initial (Ri) (Min) | 22 mOhms | 9.4 mOhms | 15 mOhms | 11 mOhms | 22 mOhms | 480 mOhms | 24 mOhms |
| Resistance - Post Trip (R1) (Max) | 54 mOhms | 22 mOhms | 37 mOhms | 26 mOhms | 54 mOhms | 1.1 Ohms | 60 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.394" L x 0.118" W (10.00mm x 3.00mm) |
| Height - Seated (Max) | 0.614" (15.60mm) | 0.925" (23.50mm) | 0.744" (18.90mm) | 0.874" (22.20mm) | 0.614" (15.60mm) | 0.500" (12.70mm) | 0.591" (15.00mm) |
| Thickness (Max) | - | - | - | - | - | - | - |
| Lead Spacing | 0.114" (2.90mm) | 0.114" (2.90mm) | 0.201" (5.10mm) | 0.114" (2.90mm) | 0.114" (2.90mm) | 0.201" (5.10mm) | 0.201" (5.10mm) |
