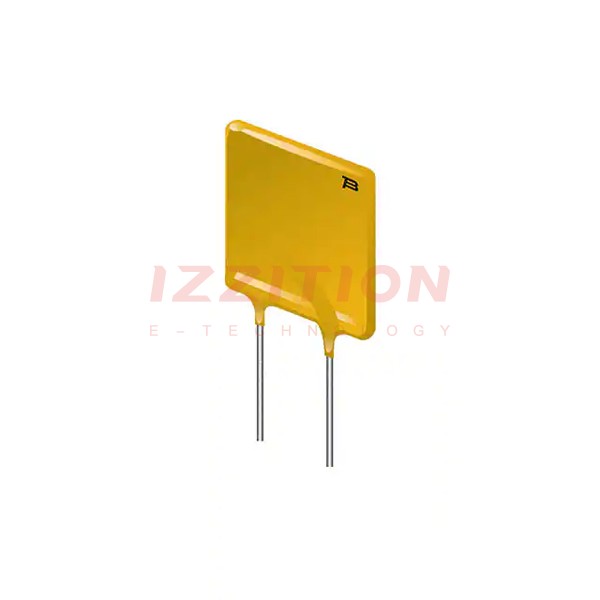

| Part Number | MF-RHT300-0 | MF-RHT400-0 | MF-RHT500-0 | MF-RHT600-0 | MF-RHT700-0 | MF-RHT800-0 | MF-RHT900-0 | MF-RHT300-2 | MF-RHT100-0 | MF-RHT1300-0 | MF-RHT200-0 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 16V | 16V | 16V | 16V | 16V | 16V | 30V | 16V | 16V |
| Current - Max | 100 A | 100 A | 100 A | 100 A | 100 A | 100 A | 100 A | 100 A | 40 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 3 A | 4 A | 5 A | 6 A | 7 A | 8 A | 9 A | 3 A | 1 A | 13 A | 2 A |
| Current - Trip (It) | 6 A | 7.5 A | 9 A | 10.8 A | 13 A | 15 A | 16.5 A | 6 A | 1.8 A | 24 A | 3.8 A |
| Time to Trip | 5 s | 5 s | 9 s | 5 s | 7 s | 8 s | 10 s | 5 s | 5.2 s | 13 s | 3 s |
| Resistance - Initial (Ri) (Min) | 33 mOhms | 24 mOhms | 17.5 mOhms | 13 mOhms | 10 mOhms | 8 mOhms | 7.4 mOhms | 33 mOhms | 180 mOhms | 4.1 mOhms | 45 mOhms |
| Resistance - Post Trip (R1) (Max) | 79 mOhms | 60 mOhms | 45 mOhms | 21.5 mOhms | 25 mOhms | 20 mOhms | 17 mOhms | 79 mOhms | 430 mOhms | 10 mOhms | 110 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.346" L x 0.118" W (8.80mm x 3.00mm) | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.630" L x 0.118" W (16.00mm x 3.00mm) | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.346" L x 0.118" W (8.80mm x 3.00mm) | 0.382" L x 0.118" W (9.70mm x 3.00mm) | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 0.370" Dia x 0.118" T (9.40mm x 3.00mm) |
| Height - Seated (Max) | 0.543" (13.80mm) | 0.591" (15.00mm) | 0.744" (18.90mm) | 0.827" (21.00mm) | 0.862" (21.90mm) | 0.886" (22.50mm) | 1.012" (25.70mm) | 0.543" (13.80mm) | 0.535" (13.60mm) | 1.130" (28.70mm) | 0.551" (14.00mm) |
| Thickness (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.215" (5.45mm) | 0.114" (2.90mm) |
