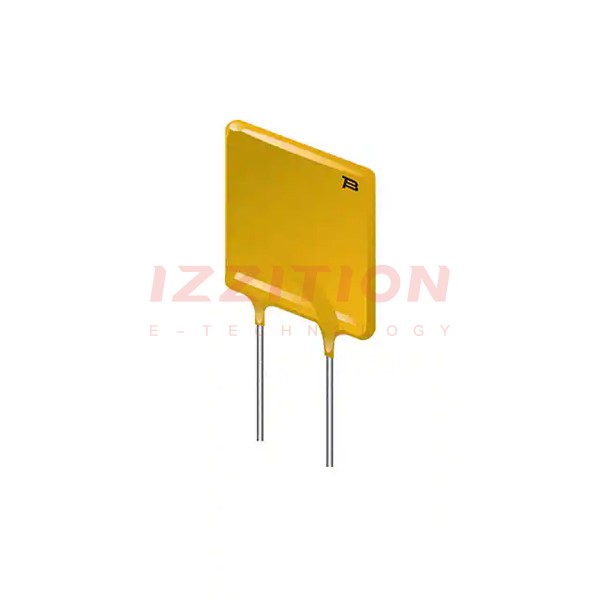

| Part Number | MF-RHT200/32-2 | MF-RHT200/32-0 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 32V | 32V |
| Current - Max | 50 A | 50 A |
| Current - Hold (Ih) (Max) | 2 A | 2 A |
| Current - Trip (It) | 3.8 A | 3.8 A |
| Time to Trip | 3 s | 3 s |
| Resistance - Initial (Ri) (Min) | 45 mOhms | 45 mOhms |
| Resistance - Post Trip (R1) (Max) | 110 mOhms | 110 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.118" Dia x 0.551" T (3.00mm x 14.00mm) | 0.370" Dia x 0.118" T (9.40mm x 3.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) | 0.551" (14.00mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.201" (5.10mm) | 0.201" (5.10mm) |
