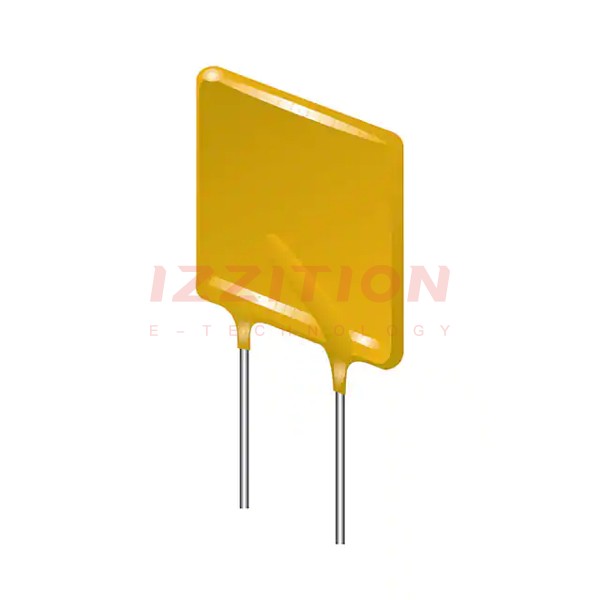

| Part Number | MF-RHT1000-2-14 | MF-RHT1000-0-14 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V |
| Current - Max | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 10 A | 10 A |
| Current - Trip (It) | 18.5 A | 18.5 A |
| Time to Trip | 9 s | 9 s |
| Resistance - Initial (Ri) (Min) | 6.2 mOhms | 6.2 mOhms |
| Resistance - Post Trip (R1) (Max) | 15 mOhms | 15 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 0.689" L x 0.118" W (17.50mm x 3.00mm) |
| Height - Seated (Max) | 1.051" (26.70mm) | 1.051" (26.70mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.402" (10.20mm) | 0.402" (10.20mm) |
