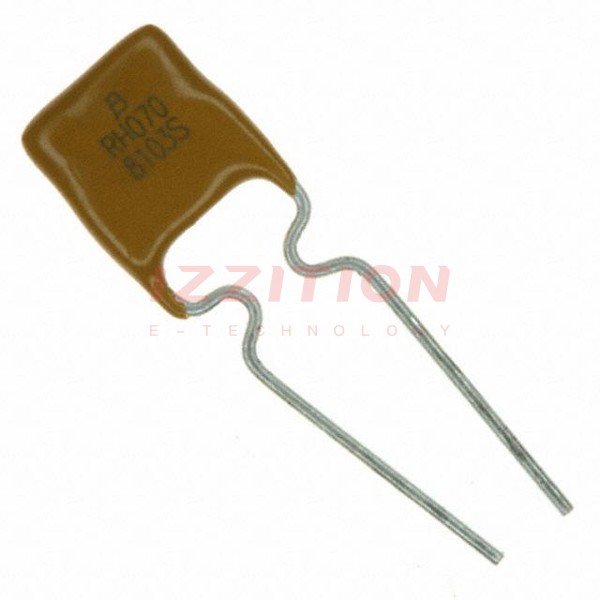

| Part Number | MF-RHT070-2 | MF-RHT050-2 | MF-RHT070-0 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 30V | 16V |
| Current - Max | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 700 mA | 500 mA | 700 mA |
| Current - Trip (It) | 1.4 A | 920 mA | 1.4 A |
| Time to Trip | 4 s | 2.5 s | 4 s |
| Resistance - Initial (Ri) (Min) | 300 mOhms | 480 mOhms | 300 mOhms |
| Resistance - Post Trip (R1) (Max) | 800 mOhms | 1.1 Ohms | 800 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.270" L x 0.118" W (6.86mm x 3.00mm) | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.270" L x 0.118" W (6.86mm x 3.00mm) |
| Height - Seated (Max) | 0.425" (10.80mm) | 0.500" (12.70mm) | 0.425" (10.80mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.114" (2.90mm) | 0.201" (5.10mm) | 0.114" (2.90mm) |
