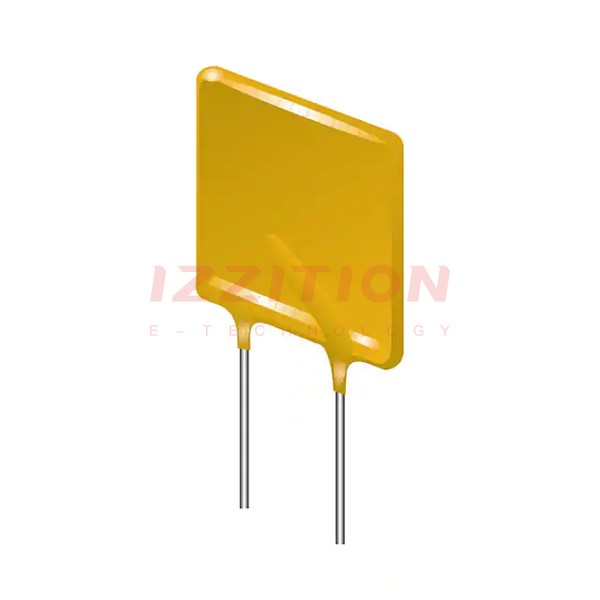

| Part Number | MF-RG650-0 | MF-RG650-2 | MF-RG600-0 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 16V |
| Current - Max | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 6.5 A | 6.5 A | - |
| Current - Trip (It) | 11.1 A | 11.1 A | 18.7 A |
| Time to Trip | 3.5 s | 3.5 s | - |
| Resistance - Initial (Ri) (Min) | 8.8 mOhms | 8.8 mOhms | 3 mOhms |
| Resistance - Post Trip (R1) (Max) | 24 mOhms | 24 mOhms | 10 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | AEC-Q200 | AEC-Q200 | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.421" L x 0.118" W (10.70mm x 3.00mm) |
| Height - Seated (Max) | 0.776" (19.70mm) | 0.776" (19.70mm) | 0.673" (17.10mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) |
