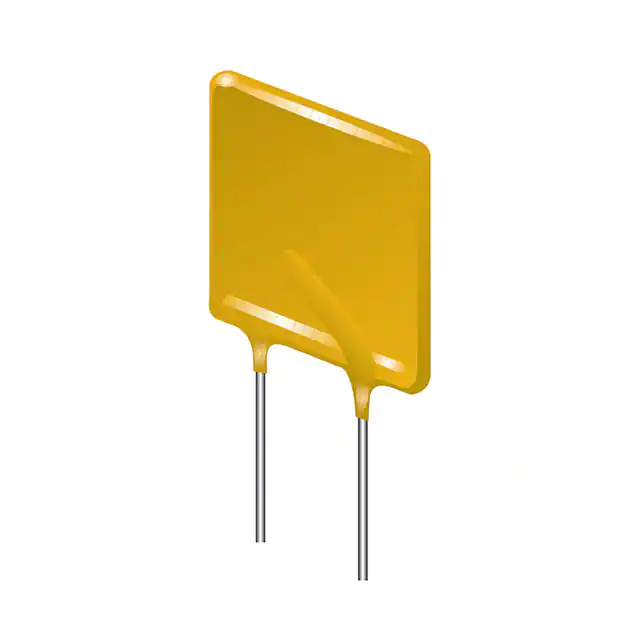

| Part Number | MF-RG500-2 | MF-RG700-2 | MF-RG800-2 | MF-RG600-2 | MF-RG900-2 | MF-R500-2 | MF-RG300-2 | MF-RG400-2 | MF-RG500-0 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 16V | 16V | 16V | 30V | 16V | 16V | 16V |
| Current - Max | 100 A | 100 A | 100 A | 100 A | 100 A | 40 A | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 5 A | 7 A | 8 A | 6 A | 9 A | 5 A | 3 A | 4 A | 5 A |
| Current - Trip (It) | 8.5 A | 11.9 A | 13.6 A | 10.2 A | 15.3 A | 10 A | 5.1 A | 6.8 A | 8.5 A |
| Time to Trip | 2 s | 8 s | 5 s | 3.3 s | 12 s | 14.5 s | 1 s | 1.7 s | 2 s |
| Resistance - Initial (Ri) (Min) | 15 mOhms | 8 mOhms | 5.6 mOhms | 10 mOhms | 4 mOhms | 10 mOhms | 38 mOhms | 21 mOhms | 15 mOhms |
| Resistance - Post Trip (R1) (Max) | 34 mOhms | 21 mOhms | 17.5 mOhms | 28 mOhms | 15 mOhms | 50 mOhms | 97.5 mOhms | 60 mOhms | 34 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | AEC-Q200 | AEC-Q200 | - | - | - | AEC-Q200 | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.441" Dia x 0.118" T (11.20mm x 3.00mm) | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.685" L x 0.118" W (17.40mm x 3.00mm) | 0.280" L x 0.118" W (7.10mm x 3.00mm) | 0.390" L x 0.118" W (9.90mm x 3.00mm) | 0.409" L x 0.118" W (10.40mm x 3.00mm) |
| Height - Seated (Max) | 0.563" (14.30mm) | 0.740" (18.80mm) | 0.823" (20.90mm) | 0.673" (17.10mm) | 0.819" (20.80mm) | 0.980" (24.90mm) | 0.433" (11.00mm) | 0.504" (12.80mm) | 0.563" (14.30mm) |
| Thickness (Max) | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.402" (10.20mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) |
