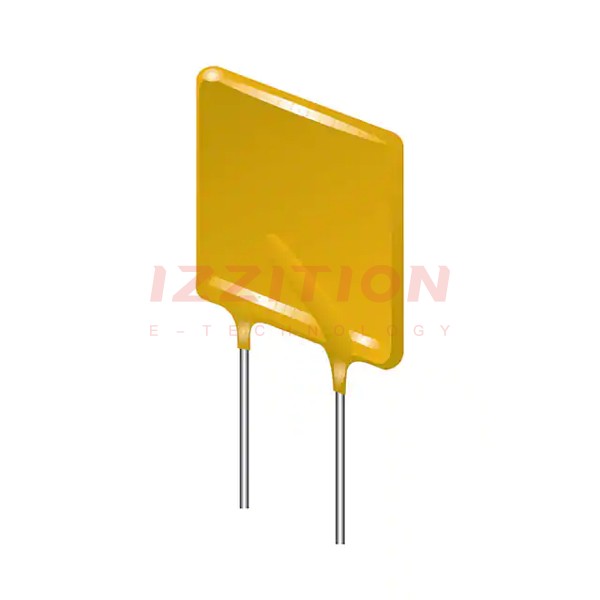

| Part Number | MF-RG1100-2 | MF-RG1000-2 | MF-RG1100-0 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 16V |
| Current - Max | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 11 A | 10 A | 11 A |
| Current - Trip (It) | 18.7 A | 17 A | 18.7 A |
| Time to Trip | 7 s | 6 s | 15.2 s |
| Resistance - Initial (Ri) (Min) | 3.7 mOhms | 4 mOhms | 3 mOhms |
| Resistance - Post Trip (R1) (Max) | 8.9 mOhms | 10.2 mOhms | 10 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | AEC-Q200 | AEC-Q200 | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.689" L x 0.118" W (17.50mm x 3.00mm) |
| Height - Seated (Max) | 1.024" (26.00mm) | 0.854" (21.70mm) | 0.988" (25.10mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) |
