Bourns Inc. MF-R500-2-99

Manufacturer No:
MF-R500-2-99
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
MF-R500-2-99 Datasheet
ECAD Model:
-
Description:

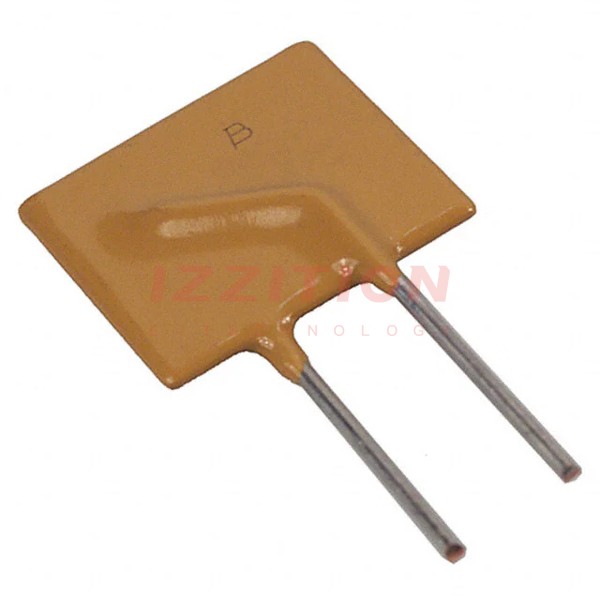

PTC RESET FUSE 30V 5A RADIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymeric
Voltage - Max:30V
Current - Max:40 A
Current - Hold (Ih) (Max):5 A
Current - Trip (It):10 A
Time to Trip:14.5 s
Resistance - Initial (Ri) (Min):10 mOhms
Resistance - Post Trip (R1) (Max):50 mOhms
Resistance - 25°C (Typ):-
Operating Temperature:-40°C ~ 85°C
Ratings:-
Mounting Type:Through Hole
Package / Case:Radial, Disc
Size / Dimension:0.685" L x 0.118" W (17.40mm x 3.00mm)
Height - Seated (Max):0.980" (24.90mm)
Thickness (Max):-
Lead Spacing:0.402" (10.20mm)
