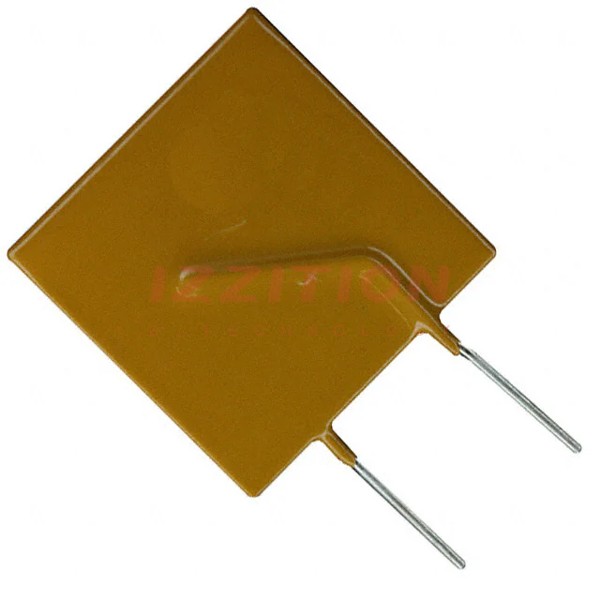

| Part Number | MF-R1100 | MF-R110 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 16V | 30V |
| Current - Max | 100 A | 40 A |
| Current - Hold (Ih) (Max) | 11 A | 1.1 A |
| Current - Trip (It) | 22 A | 2.2 A |
| Time to Trip | 20 s | 6.6 s |
| Resistance - Initial (Ri) (Min) | 3 mOhms | 100 mOhms |
| Resistance - Post Trip (R1) (Max) | 14 mOhms | 270 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.953" L x 0.118" W (24.20mm x 3.00mm) | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) |
| Height - Seated (Max) | 1.295" (32.90mm) | 0.551" (14.00mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.402" (10.20mm) | 0.201" (5.10mm) |
