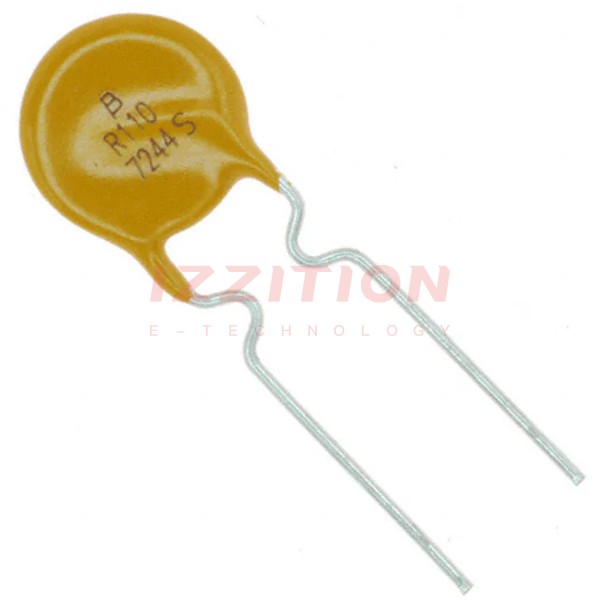

| Part Number | MF-R110-0-99 | MF-R1100-0-99 | MF-R160-0-99 | MF-R110-2-99 | MF-R010-0-99 |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 30V | 16V | 30V | 30V | 60V |
| Current - Max | 40 A | 100 A | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 1.1 A | 11 A | 1.6 A | 1.1 A | 100 mA |
| Current - Trip (It) | 2.2 A | 22 A | 3.2 A | 2.2 A | 200 mA |
| Time to Trip | 6.6 s | 20 s | 8 s | 6.6 s | 4 s |
| Resistance - Initial (Ri) (Min) | 100 mOhms | 3 mOhms | 55 mOhms | 100 mOhms | 2.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 270 mOhms | 14 mOhms | 150 mOhms | 270 mOhms | 7.5 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) | 0.953" L x 0.118" W (24.20mm x 3.00mm) | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) |
| Height - Seated (Max) | 0.551" (14.00mm) | 1.295" (32.90mm) | 0.661" (16.80mm) | 0.551" (14.00mm) | 0.500" (12.70mm) |
| Thickness (Max) | - | - | - | - | - |
| Lead Spacing | 0.201" (5.10mm) | 0.402" (10.20mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) |
