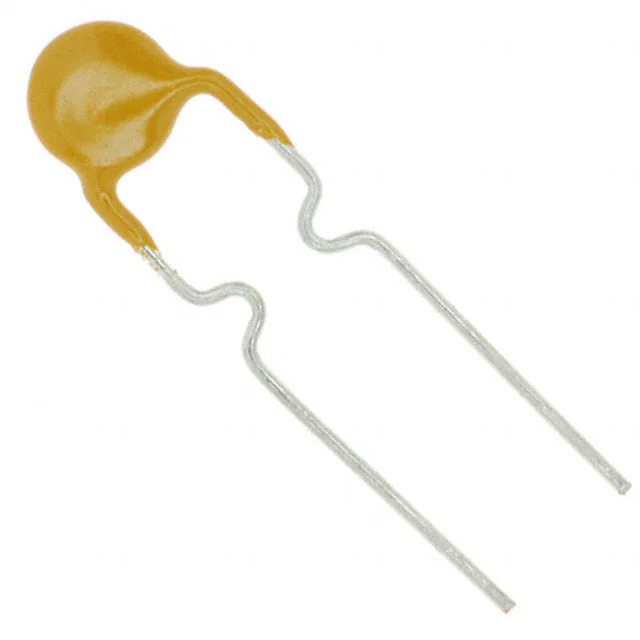

| Part Number | MF-R025-2-99 | MF-R075-2-99 | MF-R065-2-99 | MF-R005-2-99 | MF-R020-2-99 | MF-R025-0-99 |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 60V | 60V | 60V | 60V | 60V | 60V |
| Current - Max | 40 A | 40 A | 40 A | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 250 mA | 750 mA | 650 mA | 50 mA | 200 mA | 250 mA |
| Current - Trip (It) | 500 mA | 1.5 A | 1.3 A | 100 mA | 400 mA | 500 mA |
| Time to Trip | 2.5 s | 6.3 s | 5.3 s | 5 s | 2.2 s | 2.5 s |
| Resistance - Initial (Ri) (Min) | 1 Ohms | 180 mOhms | 270 mOhms | 7.3 Ohms | 1.5 Ohms | 1 Ohms |
| Resistance - Post Trip (R1) (Max) | 3 Ohms | 600 mOhms | 720 mOhms | 22 Ohms | 4.4 Ohms | 3 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.315" Dia x 0.122" T (8.00mm x 3.10mm) | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | 0.630" (16.00mm) | 0.598" (15.20mm) | 0.327" (8.30mm) | 0.500" (12.70mm) | 0.500" (12.70mm) |
| Thickness (Max) | - | - | - | - | - | - |
| Lead Spacing | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) |
