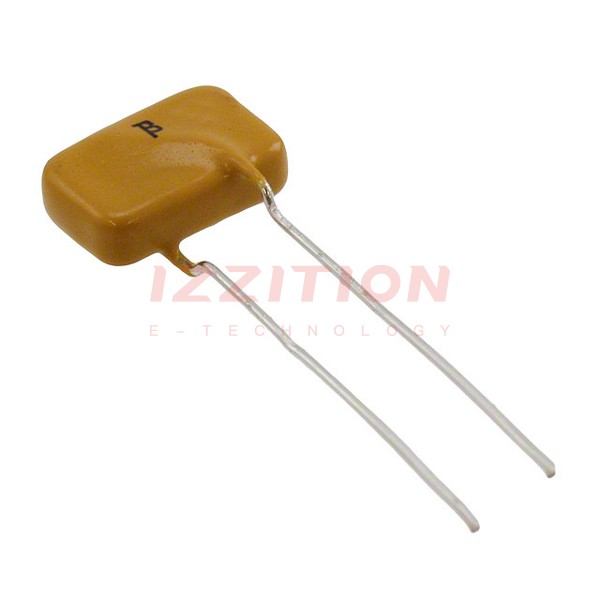

| Part Number | MF-R016/600-A-2 | MF-R015/600-A-2 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Polymeric | Polymeric |
| Voltage - Max | 250V (600V Int) | 250V (600V Int) |
| Current - Max | 3 A | 3 A |
| Current - Hold (Ih) (Max) | 160 mA | 150 mA |
| Current - Trip (It) | 320 mA | 300 mA |
| Time to Trip | 7 s | 5 s |
| Resistance - Initial (Ri) (Min) | 4 Ohms | 7 Ohms |
| Resistance - Post Trip (R1) (Max) | 16 Ohms | 20 Ohms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Box | Radial, Box |
| Size / Dimension | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.531" L x 0.236" W (13.50mm x 6.00mm) |
| Height - Seated (Max) | 0.496" (12.60mm) | 0.496" (12.60mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
