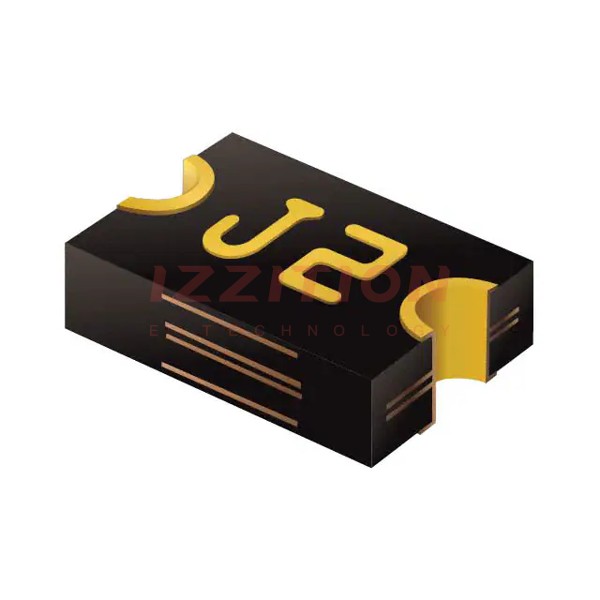

| Part Number | MF-PSML350/8-2 | MF-PSML380/8-2 | MF-PSML450/8-2 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 8V | 8V | 8V |
| Current - Max | 50 A | 50 A | 50 A |
| Current - Hold (Ih) (Max) | 3.5 A | 3.8 A | 4.5 A |
| Current - Trip (It) | 7 A | 7.6 A | 9 A |
| Time to Trip | 5 s | 5 s | 12.5 s |
| Resistance - Initial (Ri) (Min) | 2 MOhms | 1 MOhms | 1 MOhms |
| Resistance - Post Trip (R1) (Max) | 18 mOhms | 16 mOhms | 12 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric), Concave | 0805 (2012 Metric), Concave | 0805 (2012 Metric), Concave |
| Size / Dimension | 0.085" L x 0.053" W (2.15mm x 1.35mm) | 0.085" L x 0.053" W (2.15mm x 1.35mm) | 0.085" L x 0.053" W (2.15mm x 1.35mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.055" (1.40mm) | 0.055" (1.40mm) | 0.055" (1.40mm) |
| Lead Spacing | - | - | - |
