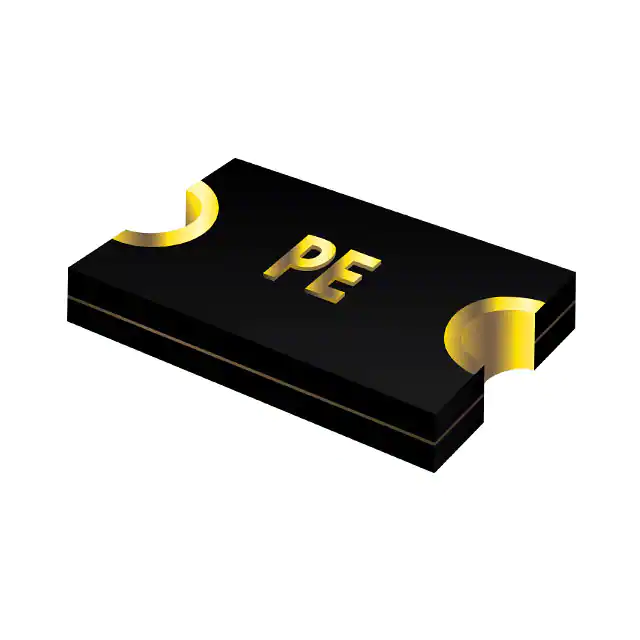

| Part Number | MF-PSML300-2 | MF-PSML350-2 | MF-NSML300-2 | MF-PSML200-2 |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V | 6V | 6V |
| Current - Max | - | 50 A | 50 A | - |
| Current - Hold (Ih) (Max) | - | 3.5 A | 3 A | - |
| Current - Trip (It) | - | 7 A | 6 A | - |
| Time to Trip | - | 5 s | 4 s | - |
| Resistance - Initial (Ri) (Min) | - | 3 mOhms | 2.5 mOhms | - |
| Resistance - Post Trip (R1) (Max) | - | 25 mOhms | 20 mOhms | - |
| Resistance - 25°C (Typ) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric), Concave | 0805 (2012 Metric), Concave | 1206 (3216 Metric), Concave | 0805 (2012 Metric), Concave |
| Size / Dimension | 0.085" L x 0.053" W (2.15mm x 1.35mm) | 0.085" L x 0.053" W (2.15mm x 1.35mm) | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.085" L x 0.053" W (2.15mm x 1.35mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.032" (0.80mm) | 0.032" (0.80mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
| Lead Spacing | - | - | - | - |
