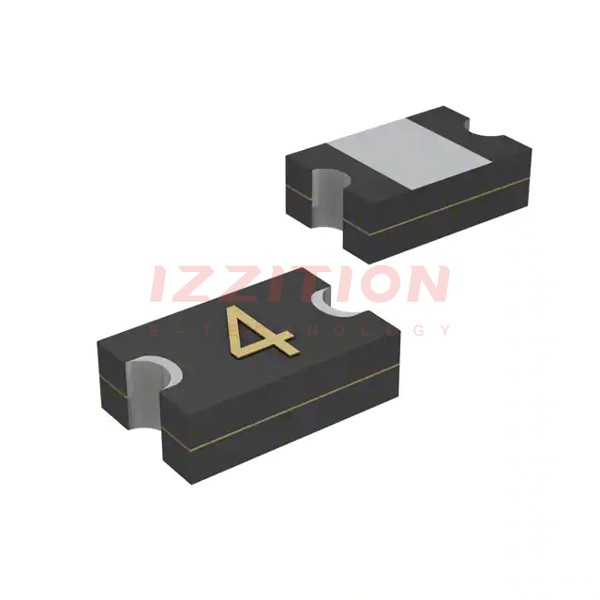

| Part Number | MF-PSMF075X-2 | MF-PSMF035X-2 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V |
| Current - Max | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 750 mA | 350 mA |
| Current - Trip (It) | 1.5 A | 750 mA |
| Time to Trip | 200 ms | 100 ms |
| Resistance - Initial (Ri) (Min) | 90 mOhms | 250 mOhms |
| Resistance - Post Trip (R1) (Max) | 350 mOhms | 1.2 Ohms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric), Concave | 0805 (2012 Metric), Concave |
| Size / Dimension | 0.085" L x 0.053" W (2.15mm x 1.35mm) | 0.085" L x 0.053" W (2.15mm x 1.35mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.049" (1.25mm) | 0.033" (0.85mm) |
| Lead Spacing | - | - |
