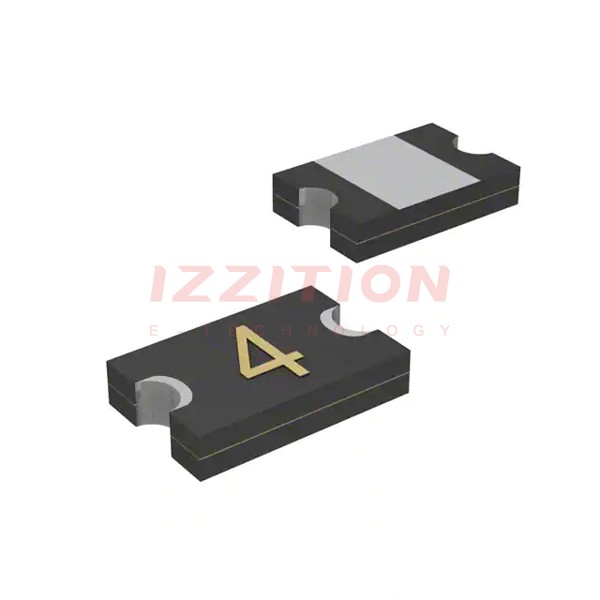

| Part Number | MF-PSMF050X-2 | MF-PSMF010X-2 | MF-PSMF020X-2 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 6V | 15V | 9V |
| Current - Max | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 500 mA | 100 mA | 200 mA |
| Current - Trip (It) | 1 A | 300 mA | 500 mA |
| Time to Trip | 100 ms | 1.5 s | 20 ms |
| Resistance - Initial (Ri) (Min) | 150 mOhms | 1 Ohms | 650 mOhms |
| Resistance - Post Trip (R1) (Max) | 900 mOhms | 7.5 Ohms | 3.5 Ohms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric), Concave | 0805 (2012 Metric), Concave | 0805 (2012 Metric), Concave |
| Size / Dimension | 0.085" L x 0.053" W (2.15mm x 1.35mm) | 0.085" L x 0.053" W (2.15mm x 1.35mm) | 0.085" L x 0.053" W (2.15mm x 1.35mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.033" (0.85mm) | 0.033" (0.85mm) | 0.033" (0.85mm) |
| Lead Spacing | - | - | - |
