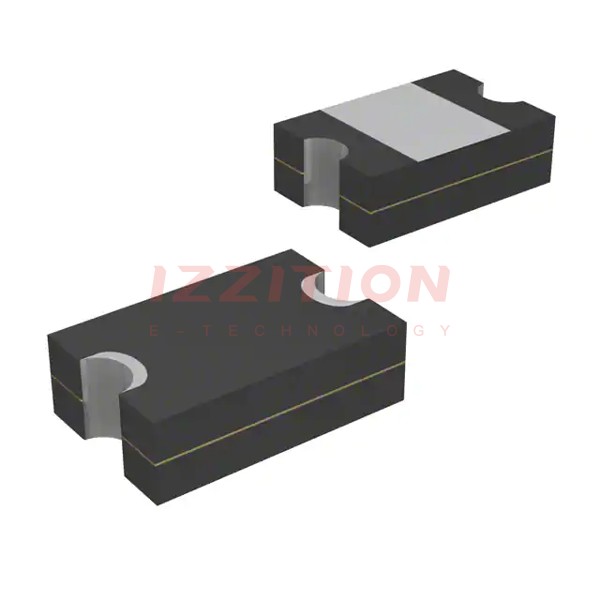

| Part Number | MF-PSHT016KX-2 | MF-NSHT016KX-2 | MF-PSHT010KX-2 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 30V | 16V |
| Current - Max | 40 A | 20 A | 40 A |
| Current - Hold (Ih) (Max) | 160 mA | 160 mA | 100 mA |
| Current - Trip (It) | 800 mA | 800 mA | 500 mA |
| Time to Trip | 100 ms | 100 ms | 1.5 s |
| Resistance - Initial (Ri) (Min) | 700 mOhms | 700 mOhms | 1 Ohms |
| Resistance - Post Trip (R1) (Max) | 6 Ohms | 6 Ohms | 7.5 Ohms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric), Concave | 1206 (3216 Metric), Concave | 0805 (2012 Metric), Concave |
| Size / Dimension | 0.085" L x 0.053" W (2.15mm x 1.35mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.085" L x 0.053" W (2.15mm x 1.35mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.031" (0.80mm) | 0.033" (0.85mm) | 0.031" (0.80mm) |
| Lead Spacing | - | - | - |
