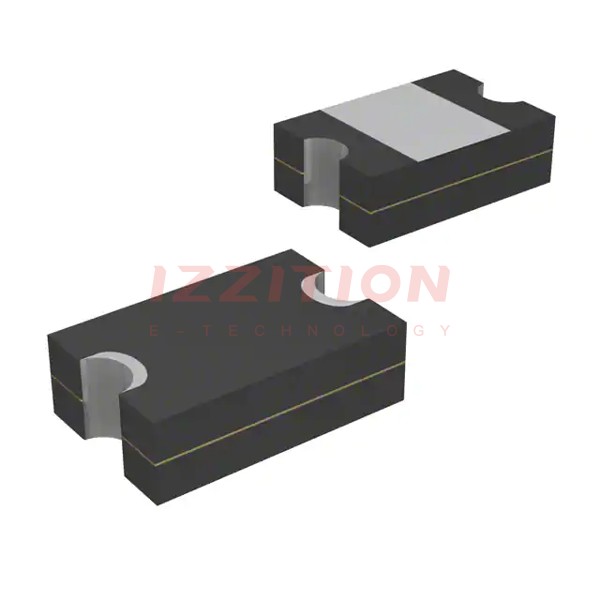

| Part Number | MF-PSHT005KX-2 | MF-PSHT035KX-2 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V |
| Current - Max | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 50 mA | 350 mA |
| Current - Trip (It) | 250 mA | 1.75 A |
| Time to Trip | 1.5 s | 100 ms |
| Resistance - Initial (Ri) (Min) | 1.5 Ohms | 250 mOhms |
| Resistance - Post Trip (R1) (Max) | 50 Ohms | 3 Ohms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric), Concave | 0805 (2012 Metric), Concave |
| Size / Dimension | 0.085" L x 0.053" W (2.15mm x 1.35mm) | 0.085" L x 0.053" W (2.15mm x 1.35mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.031" (0.80mm) | 0.047" (1.20mm) |
| Lead Spacing | - | - |
