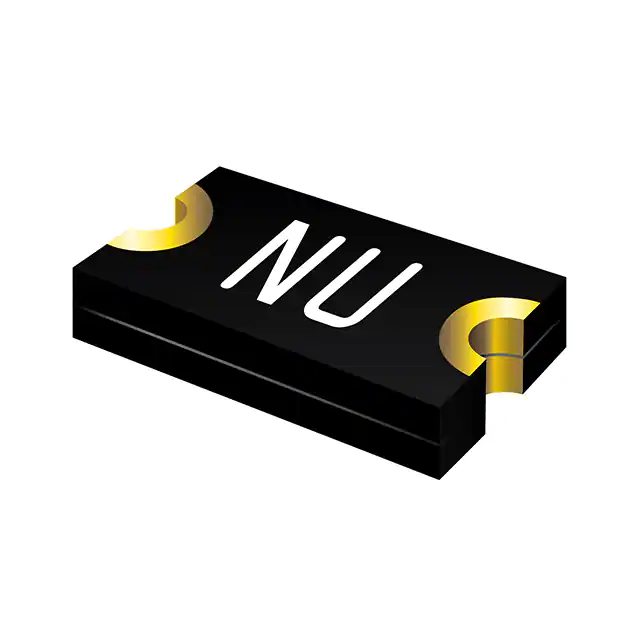

| Part Number | MF-NSML400-2 | MF-NSML450-2 | MF-NSML500-2 | MF-NSML600-2 | MF-NSML200-2 | MF-NSML300-2 |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V | 6V | 6V | 6V | 6V |
| Current - Max | 50 A | 50 A | 50 A | 50 A | 50 A | 50 A |
| Current - Hold (Ih) (Max) | 4 A | 4.5 A | 5 A | 6 A | 2 A | 3 A |
| Current - Trip (It) | 8 A | 9 A | 10 A | 12 A | 4 A | 6 A |
| Time to Trip | 5 s | 2 s | 2 s | 2 s | 1 s | 4 s |
| Resistance - Initial (Ri) (Min) | 1.5 mOhms | 1 MOhms | 1 MOhms | 1 MOhms | 5 mOhms | 2.5 mOhms |
| Resistance - Post Trip (R1) (Max) | 14 mOhms | 14 mOhms | 12 mOhms | 10 mOhms | 25 mOhms | 20 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.128" L x 0.063" W (3.25mm x 1.60mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
| Thickness (Max) | 0.024" (0.60mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
| Lead Spacing | - | - | - | - | - | - |
