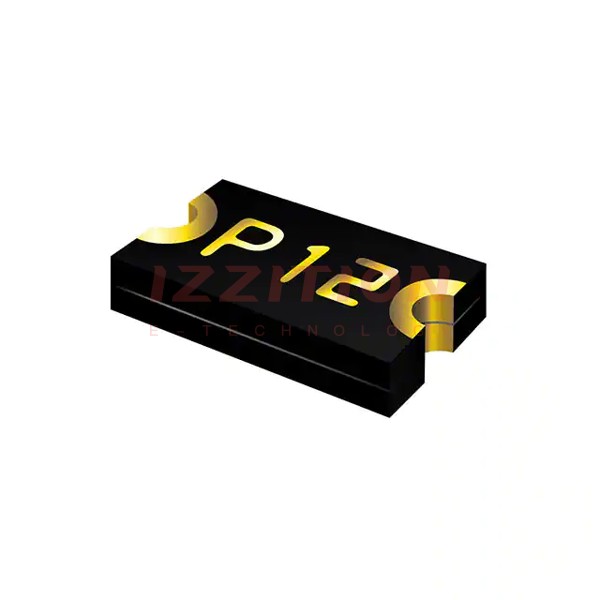

| Part Number | MF-NSML380/6-2 | MF-NSML300/6-2 | MF-NSML350/6-2 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V | 6V |
| Current - Max | 50 A | 50 A | 50 A |
| Current - Hold (Ih) (Max) | 3.8 A | 3 A | 3.5 A |
| Current - Trip (It) | 7.6 A | 6 A | 7 A |
| Time to Trip | 5 s | 5 s | 5 s |
| Resistance - Initial (Ri) (Min) | 2 MOhms | 3 mOhms | 2 MOhms |
| Resistance - Post Trip (R1) (Max) | 20 mOhms | 24 mOhms | 22 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.128" L x 0.063" W (3.25mm x 1.60mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.055" (1.40mm) | 0.055" (1.40mm) | 0.055" (1.40mm) |
| Lead Spacing | - | - | - |
