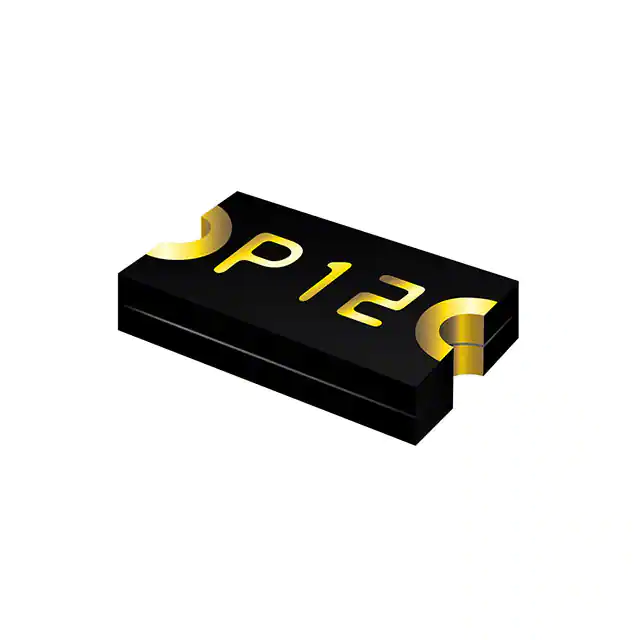

| Part Number | MF-NSML260/12-2 | MF-PSML260/12-2 | MF-NSML200/12-2 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 12V | 12V | 12V |
| Current - Max | 50 A | 50 A | 50 A |
| Current - Hold (Ih) (Max) | 2.6 A | 2.6 A | 2 A |
| Current - Trip (It) | 5.2 A | 5.2 A | 4 A |
| Time to Trip | 5 s | 4 s | 5 s |
| Resistance - Initial (Ri) (Min) | 4 mOhms | 3 mOhms | 5 mOhms |
| Resistance - Post Trip (R1) (Max) | 30 mOhms | 30 mOhms | 40 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave | 0805 (2012 Metric), Concave | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.085" L x 0.053" W (2.15mm x 1.35mm) | 0.128" L x 0.063" W (3.25mm x 1.60mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.039" (1.00mm) | 0.055" (1.40mm) | 0.028" (0.70mm) |
| Lead Spacing | - | - | - |
