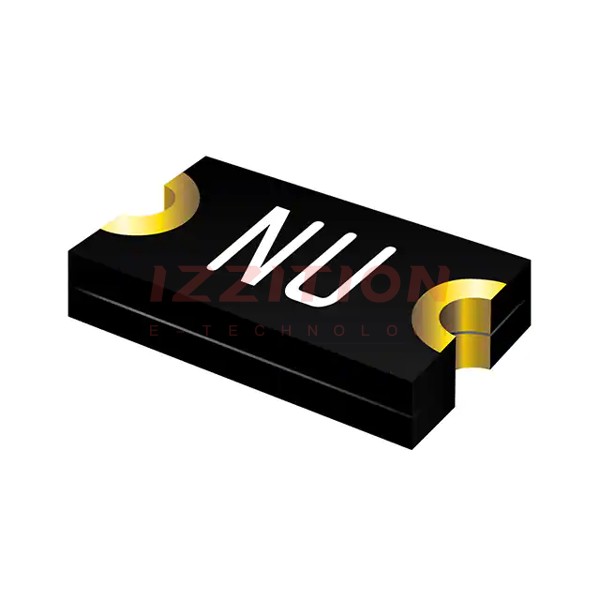

| Part Number | MF-NSML200-2 | MF-NSML500-2 | MF-PSML200-2 | MF-NSML260-2 | MF-NSML300-2 | MF-NSML400-2 | MF-NSML600-2 | MF-NSMF200-2 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V | 6V | 6V | 6V | 6V | 6V | 6V |
| Current - Max | 50 A | 50 A | - | 50 A | 50 A | 50 A | 50 A | 100 A |
| Current - Hold (Ih) (Max) | 2 A | 5 A | - | 2.6 A | 3 A | 4 A | 6 A | 2 A |
| Current - Trip (It) | 4 A | 10 A | - | 5.2 A | 6 A | 8 A | 12 A | 4 A |
| Time to Trip | 1 s | 2 s | - | 4 s | 4 s | 5 s | 2 s | 1 s |
| Resistance - Initial (Ri) (Min) | 5 mOhms | 1 MOhms | - | 3 mOhms | 2.5 mOhms | 1.5 mOhms | 1 MOhms | 20 mOhms |
| Resistance - Post Trip (R1) (Max) | 25 mOhms | 12 mOhms | - | 26 mOhms | 20 mOhms | 14 mOhms | 10 mOhms | 85 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - | - | - | - | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave | 0805 (2012 Metric), Concave | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.085" L x 0.053" W (2.15mm x 1.35mm) | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.128" L x 0.063" W (3.25mm x 1.60mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.024" (0.60mm) | 0.047" (1.20mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.047" (1.20mm) | 0.063" (1.60mm) |
| Lead Spacing | - | - | - | - | - | - | - | - |
