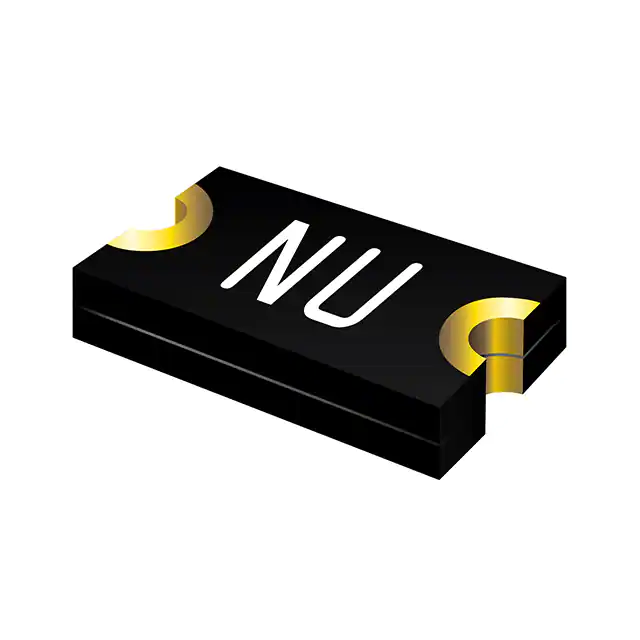

| Part Number | MF-NSML175-2 | MF-PSML175-2 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V |
| Current - Max | 50 A | - |
| Current - Hold (Ih) (Max) | 1.75 A | - |
| Current - Trip (It) | 3.5 A | - |
| Time to Trip | 500 ms | - |
| Resistance - Initial (Ri) (Min) | 5 mOhms | - |
| Resistance - Post Trip (R1) (Max) | 30 mOhms | - |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave | 0805 (2012 Metric), Concave |
| Size / Dimension | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.085" L x 0.053" W (2.15mm x 1.35mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) |
| Lead Spacing | - | - |
