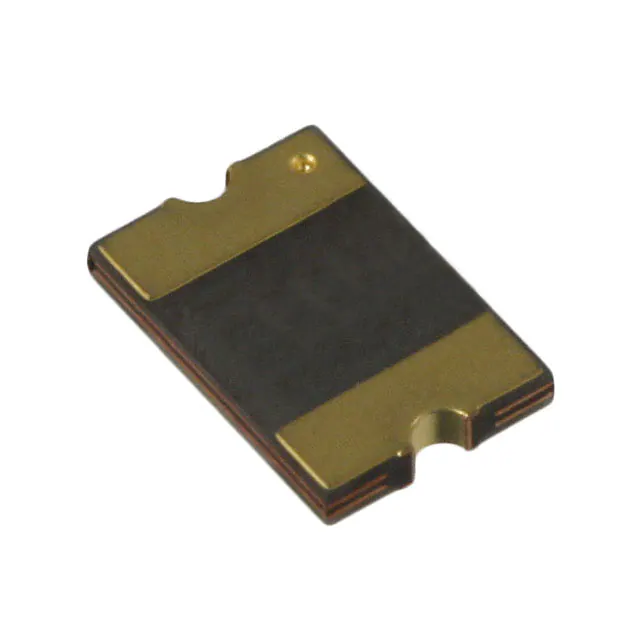

| Part Number | MF-MSMF250/16X-2 | MF-MSMF250/16-2 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Obsolete |
| Type | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V |
| Current - Max | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 2.5 A | 2.5 A |
| Current - Trip (It) | 5 A | 5 A |
| Time to Trip | 5 s | 5 s |
| Resistance - Initial (Ri) (Min) | 15 mOhms | 15 mOhms |
| Resistance - Post Trip (R1) (Max) | 100 mOhms | 100 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.033" (0.85mm) | 0.033" (0.85mm) |
| Lead Spacing | - | - |
