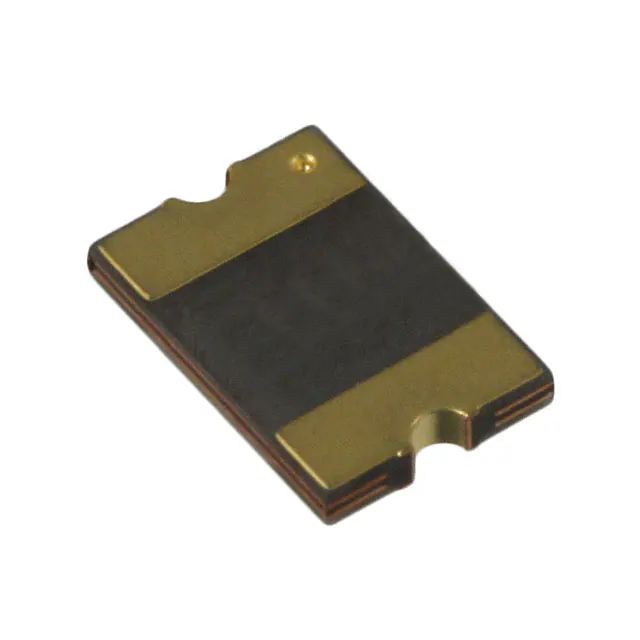

| Part Number | MF-MSMF050-2 | MF-NSMF050-2 | MF-MSMF150-2 | MF-MSMD050-2 | MF-MSMF010-2 | MF-MSMF020-2 | MF-MSMF030-2 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 15V | 13.2V | 6V | 15V | 60V | 30V | 30V |
| Current - Max | 100 A | 100 A | 100 A | 100 A | 40 A | 80 A | 10 A |
| Current - Hold (Ih) (Max) | 500 mA | 500 mA | 1.5 A | 500 mA | 100 mA | 200 mA | 300 mA |
| Current - Trip (It) | 1 A | 1 A | 3 A | 1 A | 300 mA | 400 mA | 600 mA |
| Time to Trip | 150 ms | 100 ms | 500 ms | 150 ms | 1.5 s | 60 ms | 100 ms |
| Resistance - Initial (Ri) (Min) | 150 mOhms | 150 mOhms | 30 mOhms | 150 mOhms | 700 mOhms | 400 mOhms | 300 mOhms |
| Resistance - Post Trip (R1) (Max) | 1 Ohms | 700 mOhms | 120 mOhms | 1 Ohms | 15 Ohms | 6 Ohms | 3 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | - | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave | 1206 (3216 Metric), Concave | 1812 (4532 Metric), Concave | 1812 (4532 Metric) | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.020" W (4.55mm x 0.50mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
| Thickness (Max) | 0.033" (0.85mm) | 0.033" (0.85mm) | 0.033" (0.85mm) | 0.134" (3.41mm) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) |
| Lead Spacing | - | - | - | - | - | - | - |
