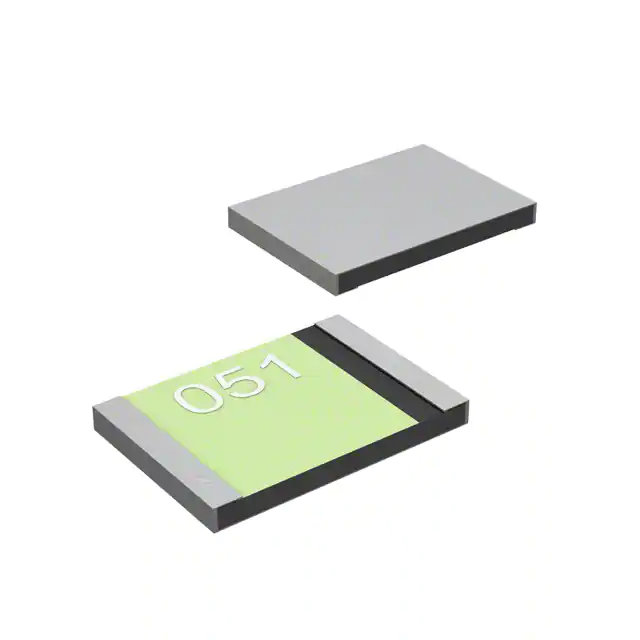

| Part Number | MF-MSMD125-2 | MF-MSMF125-2 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V |
| Current - Max | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 1.25 A | 1.25 A |
| Current - Trip (It) | 2.5 A | 2.5 A |
| Time to Trip | 400 ms | 400 ms |
| Resistance - Initial (Ri) (Min) | 35 mOhms | 35 mOhms |
| Resistance - Post Trip (R1) (Max) | 140 mOhms | 140 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric) | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.015" W (4.55mm x 0.39mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.134" (3.41mm) | 0.033" (0.85mm) |
| Lead Spacing | - | - |
