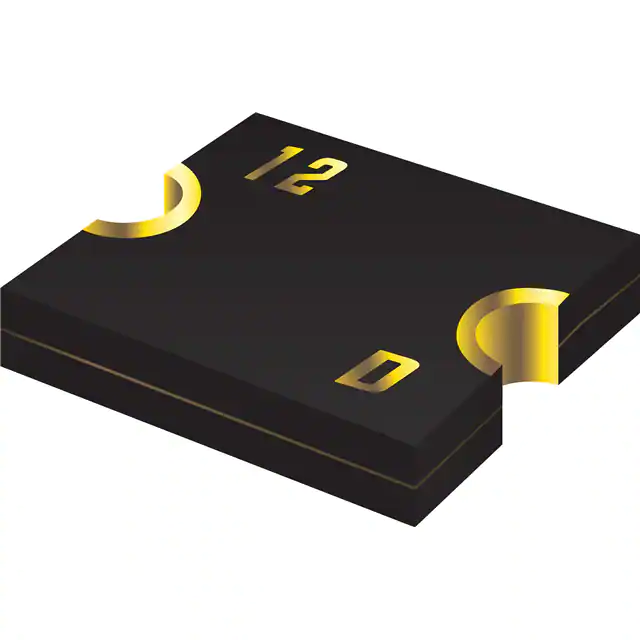

| Part Number | MF-MSHT125KX-2 | MF-MSHT175KX-2 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 9V | 9V |
| Current - Max | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 1.25 A | 1.75 A |
| Current - Trip (It) | 6.25 A | 7 A |
| Time to Trip | 5 s | 5 s |
| Resistance - Initial (Ri) (Min) | 30 mOhms | 18 mOhms |
| Resistance - Post Trip (R1) (Max) | 300 mOhms | 170 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.181" L x 0.128" W (4.60mm x 3.24mm) | 0.181" L x 0.128" W (4.60mm x 3.24mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) |
| Lead Spacing | - | - |
