Please send RFQ , we will respond immediately.

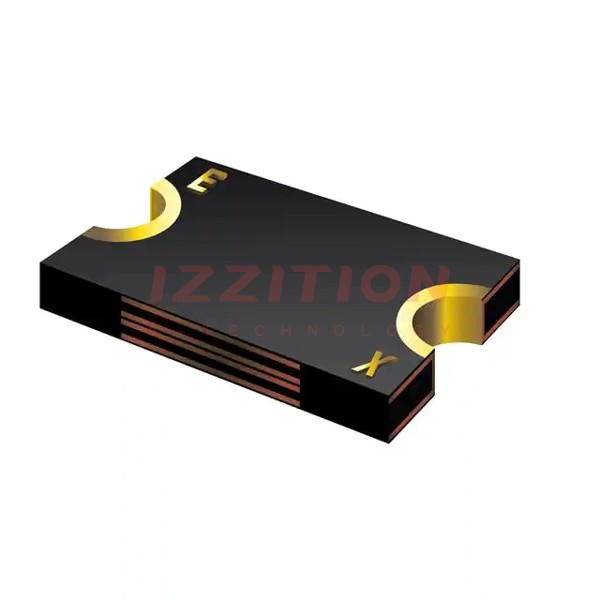

| Part Number | MF-LSMF330/24X-2 | MF-LSMF300/24X-2 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 24V | 24V |
| Current - Max | - | 20 A |
| Current - Hold (Ih) (Max) | 3.3 A | 3 A |
| Current - Trip (It) | - | 5.2 A |
| Time to Trip | - | 5 s |
| Resistance - Initial (Ri) (Min) | - | 20 mOhms |
| Resistance - Post Trip (R1) (Max) | - | 75 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2920 (7351 Metric), Concave | 2920 (7351 Metric), Concave |
| Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) | 0.289" L x 0.202" W (7.36mm x 5.12mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | - | 0.063" (1.60mm) |
| Lead Spacing | - | - |
