Please send RFQ , we will respond immediately.

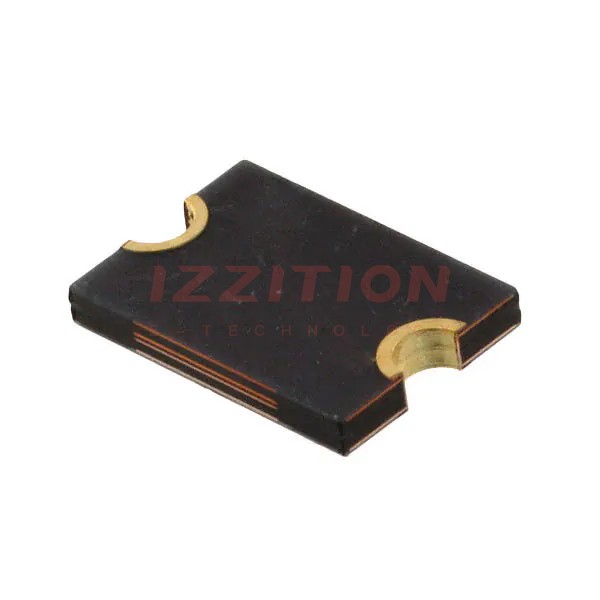

| Part Number | MF-LSMF300X-2 | MF-LSMF330X-2 | MF-LSMF200X-2 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 6V | - | - |
| Current - Max | 40 A | - | - |
| Current - Hold (Ih) (Max) | 3 A | 3.3 A | 2 A |
| Current - Trip (It) | 5 A | - | - |
| Time to Trip | 20 s | - | - |
| Resistance - Initial (Ri) (Min) | 15 mOhms | - | - |
| Resistance - Post Trip (R1) (Max) | 48 mOhms | - | - |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2920 (7351 Metric), Concave | 2920 (7351 Metric), Concave | 2920 (7351 Metric), Concave |
| Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) | 0.290" L x 0.202" W (7.36mm x 5.12mm) | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.033" (0.85mm) | - | - |
| Lead Spacing | - | - | - |
