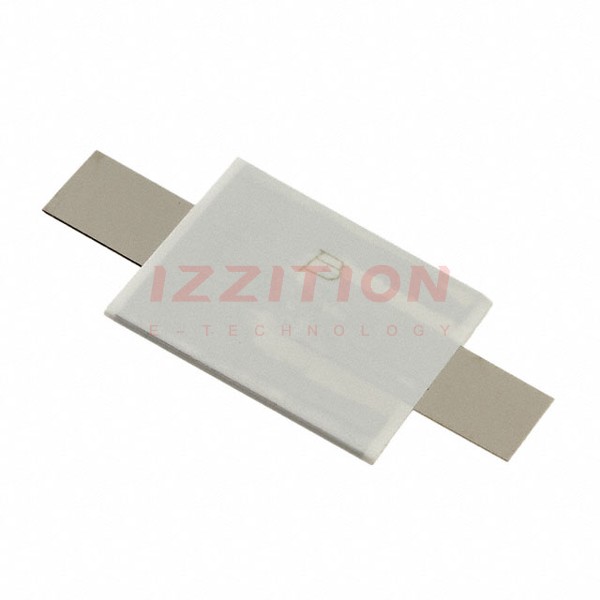

| Part Number | MF-LS340 | MF-LS340S |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Obsolete |
| Type | Polymeric | Polymeric |
| Voltage - Max | 24V | 24V |
| Current - Max | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 3.4 A | 3.4 A |
| Current - Trip (It) | 6.8 A | 6.8 A |
| Time to Trip | 5 s | 5 s |
| Resistance - Initial (Ri) (Min) | 16 mOhms | 16 mOhms |
| Resistance - Post Trip (R1) (Max) | 50 mOhms | 50 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | User Defined | User Defined |
| Package / Case | Strap | Strap |
| Size / Dimension | 0.984" L x 0.604" W (25.00mm x 15.35mm) | 0.984" L x 0.604" W (25.00mm x 15.35mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Lead Spacing | - | - |
