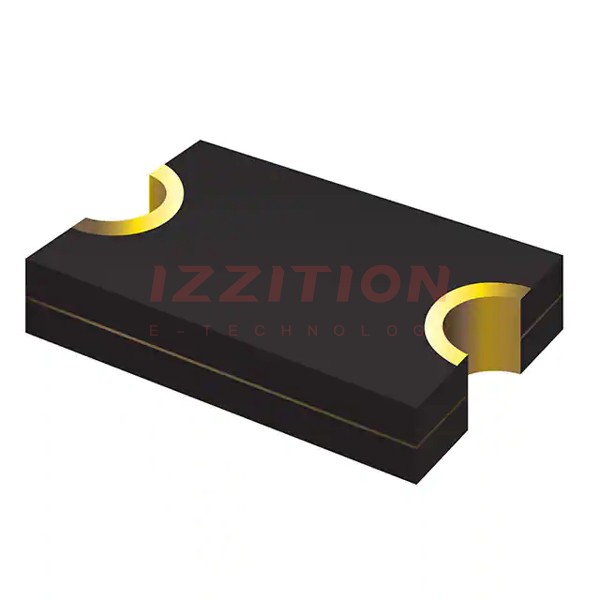

| Part Number | MF-FSML175/8-2 | MF-FSML075/8-2 | MF-FSML125/8-2 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 8V | 8V | 8V |
| Current - Max | 50 A | 50 A | 50 A |
| Current - Hold (Ih) (Max) | 1.75 A | 750 mA | 1.25 A |
| Current - Trip (It) | 3.5 A | 1.5 A | 2.5 A |
| Time to Trip | 5 s | 1 s | 3 s |
| Resistance - Initial (Ri) (Min) | 8 mOhms | 50 mOhms | 20 mOhms |
| Resistance - Post Trip (R1) (Max) | 70 mOhms | 250 mOhms | 180 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric), Concave | 0603 (1608 Metric), Concave | 0603 (1608 Metric), Concave |
| Size / Dimension | 0.065" L x 0.033" W (1.65mm x 0.85mm) | 0.065" L x 0.033" W (1.65mm x 0.85mm) | 0.065" L x 0.033" W (1.65mm x 0.85mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.055" (1.40mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Lead Spacing | - | - | - |
