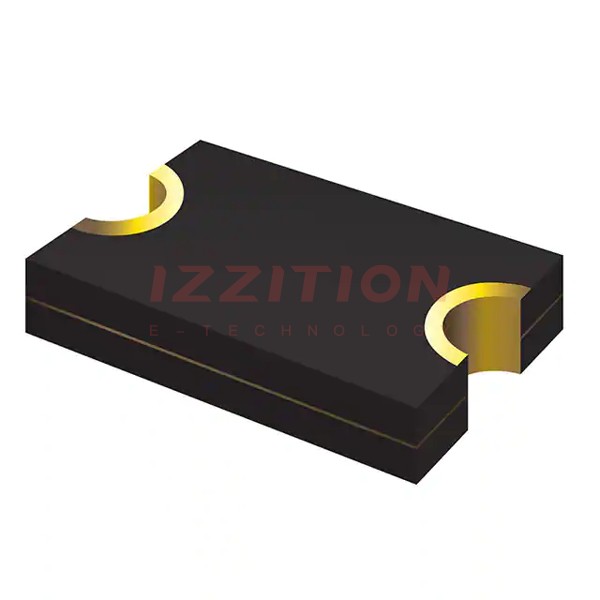

| Part Number | MF-FSML150/8-2 | MF-FSML050/8-2 | MF-FSML100/8-2 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 8V | 8V | 8V |
| Current - Max | 50 A | 50 A | 50 A |
| Current - Hold (Ih) (Max) | 1.5 A | 500 mA | 1 A |
| Current - Trip (It) | 3 A | 1 A | 2 A |
| Time to Trip | 4 s | 60 ms | 2 s |
| Resistance - Initial (Ri) (Min) | 10 mOhms | 60 mOhms | 40 mOhms |
| Resistance - Post Trip (R1) (Max) | 120 mOhms | 500 mOhms | 220 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric), Concave | 0603 (1608 Metric), Concave | 0603 (1608 Metric), Concave |
| Size / Dimension | 0.065" L x 0.033" W (1.65mm x 0.85mm) | 0.065" L x 0.033" W (1.65mm x 0.85mm) | 0.065" L x 0.033" W (1.65mm x 0.85mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.055" (1.40mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Lead Spacing | - | - | - |
