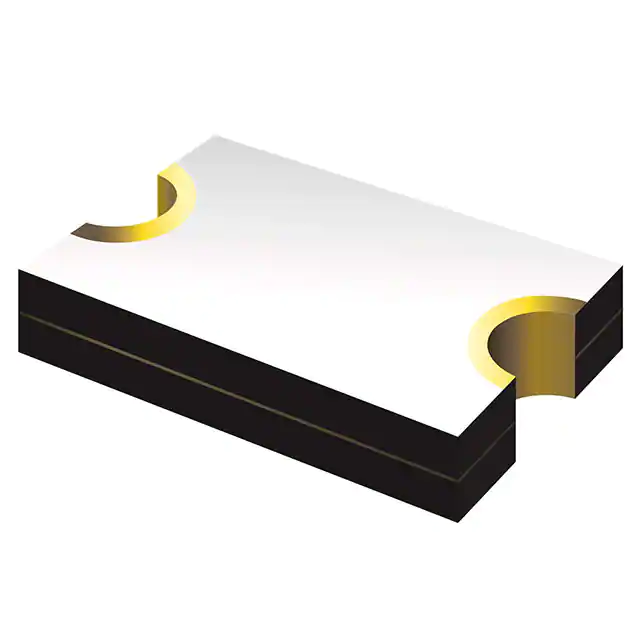

| Part Number | MF-FSHT016KX-2 | MF-NSHT016KX-2 | MF-FSHT010KX-2 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 12V | 30V | 12V |
| Current - Max | 40 A | 20 A | 40 A |
| Current - Hold (Ih) (Max) | 160 mA | 160 mA | 100 mA |
| Current - Trip (It) | 800 mA | 800 mA | 500 mA |
| Time to Trip | 100 ms | 100 ms | 1.5 s |
| Resistance - Initial (Ri) (Min) | 600 mOhms | 700 mOhms | 900 mOhms |
| Resistance - Post Trip (R1) (Max) | 6 Ohms | 6 Ohms | 8.5 Ohms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | - | AEC-Q200 | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric), Concave | 1206 (3216 Metric), Concave | 0603 (1608 Metric), Concave |
| Size / Dimension | 0.065" L x 0.033" W (1.65mm x 0.85mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.065" L x 0.033" W (1.65mm x 0.85mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.026" (0.65mm) | 0.033" (0.85mm) | 0.026" (0.65mm) |
| Lead Spacing | - | - | - |
