Please send RFQ , we will respond immediately.

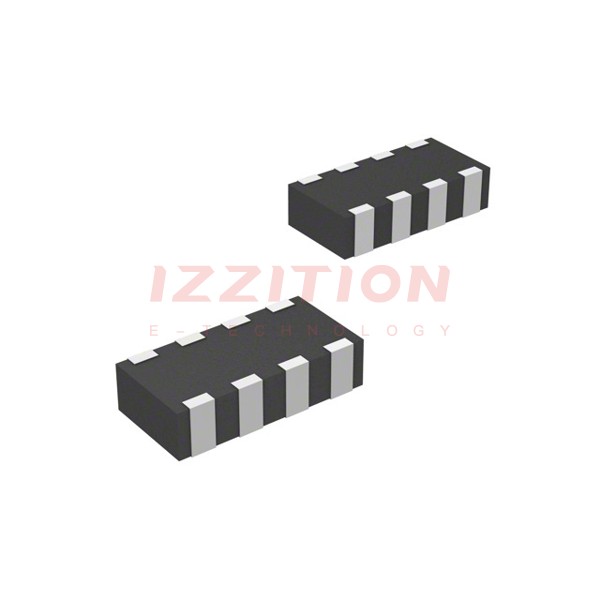

| Part Number | MA3216-121M4 | MA3216-121T4 | MA3216-121S4 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Filter Type | - | - | - |
| Number of Lines | 4 | 4 | 4 |
| Impedance @ Frequency | 120 Ohms @ 100 MHz | 120 Ohms @ 100 MHz | 120 Ohms @ 100 MHz |
| Current Rating (Max) | 100mA | 200mA | 200mA |
| DC Resistance (DCR) (Max) | 200mOhm | 200mOhm | 250mOhm |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 1206 (3216 Metric), Array, 8 PC Pad | 1206 (3216 Metric), Array, 8 PC Pad | 1206 (3216 Metric), Array, 8 PC Pad |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Features | - | - | - |
