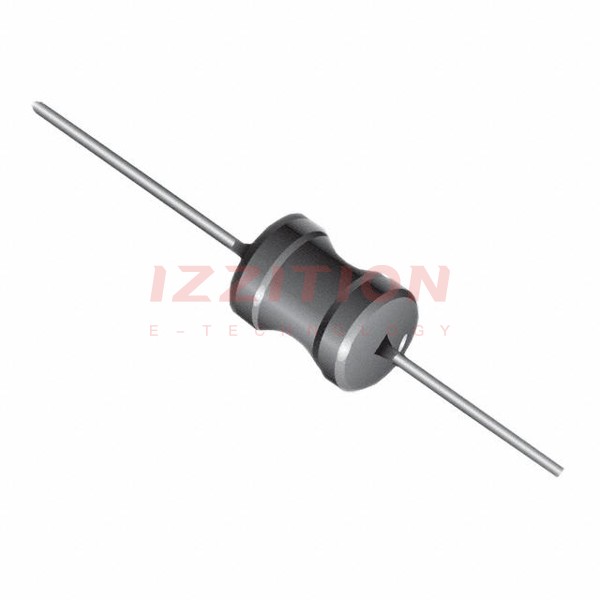

| Part Number | LPA0618-251KL | LPA0618-250KL |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 250 µH | 25 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 400 mA | 1.2 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1Ohm Max | 150mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial | Axial |
| Supplier Device Package | - | - |
| Size / Dimension | 0.236" Dia x 0.984" L (6.00mm x 25.00mm) | 0.236" Dia x 0.984" L (6.00mm x 25.00mm) |
| Height - Seated (Max) | - | - |
