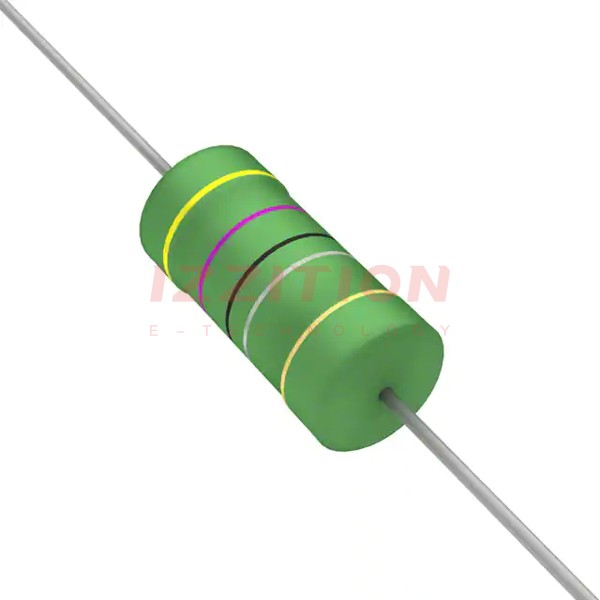

| Part Number | FW20A4R70JA | FW30A4R70JA | FW50A4R70JA | FW10A4R70JA |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Resistance | 4.7 Ohms | 4.7 Ohms | 4.7 Ohms | 4.7 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 2W | 3W | 5W | 1W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Fusible, Safety | Fusible, Safety | Fusible, Safety | Fusible, Safety |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.236" Dia x 0.472" L (6.00mm x 12.00mm) | 0.256" Dia x 0.630" L (6.50mm x 16.00mm) | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | 0.217" Dia x 0.472" L (5.50mm x 12.00mm) |
| Height - Seated (Max) | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - |
