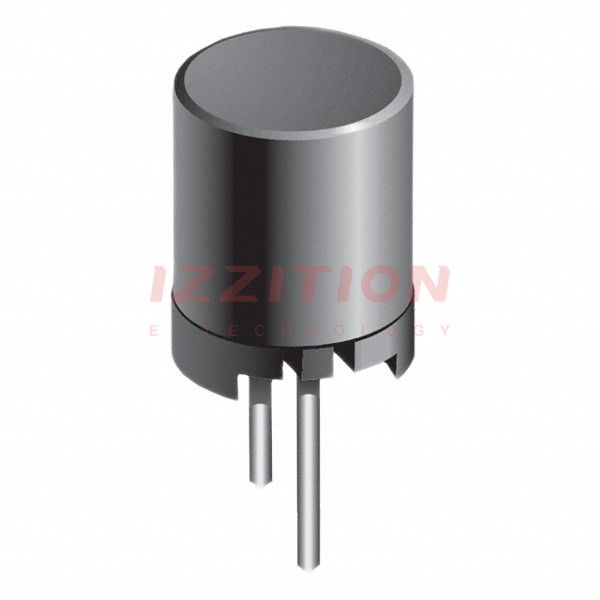

| Part Number | FSR1013-472KL | FSR1013-473KL |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 4.7 mH | 47 mH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 70 mA | 22 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 23Ohm Max | 205Ohm Max |
| Q @ Freq | 30 @ 252kHz | 30 @ 79.6kHz |
| Frequency - Self Resonant | 320kHz | 110kHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 0.413" Dia (10.50mm) | 0.413" Dia (10.50mm) |
| Height - Seated (Max) | 0.532" (13.50mm) | 0.532" (13.50mm) |
