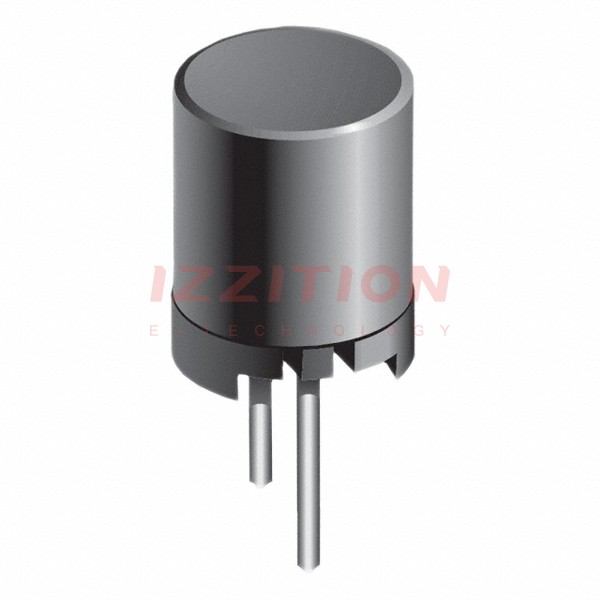

| Part Number | FSR1013-123KL | FSR1013-153KL | FSR1013-183KL | FSR1013-223KL | FSR1013-103KL | FSR1013-122KL |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 mH | 15 mH | 18 mH | 22 mH | 10 mH | 1.2 mH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 40 mA | 38 mA | 35 mA | 30 mA | 45 mA | 140 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 50Ohm Max | 58Ohm Max | 63Ohm Max | 90Ohm Max | 35Ohm Max | 5Ohm Max |
| Q @ Freq | 50 @ 79.6kHz | 50 @ 79.6kHz | 50 @ 79.6kHz | 40 @ 79.6kHz | 50 @ 79.6kHz | 40 @ 252kHz |
| Frequency - Self Resonant | 210kHz | 190kHz | 180kHz | 140kHz | 240kHz | 670kHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.413" Dia (10.50mm) | 0.413" Dia (10.50mm) | 0.413" Dia (10.50mm) | 0.413" Dia (10.50mm) | 0.413" Dia (10.50mm) | 0.413" Dia (10.50mm) |
| Height - Seated (Max) | 0.532" (13.50mm) | 0.532" (13.50mm) | 0.532" (13.50mm) | 0.532" (13.50mm) | 0.532" (13.50mm) | 0.532" (13.50mm) |
