FSR1013-102KL
  • Share:

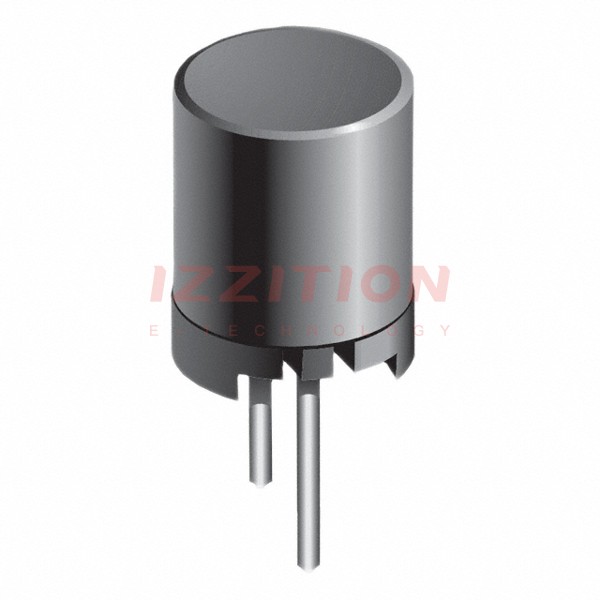

Bourns Inc. FSR1013-102KL

Manufacturer No:
FSR1013-102KL
Manufacturer:
Bourns Inc.
Package:
Bulk
Datasheet:
FSR1013-102KL Datasheet
ECAD Model:
-
Description:
FIXED IND 1MH 150MA 4 OHM TH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:1 mH
Tolerance:±10%
Current Rating (Amps):150 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):4Ohm Max
Q @ Freq:40 @ 252kHz
Frequency - Self Resonant:740kHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.413" Dia (10.50mm)
Height - Seated (Max):0.532" (13.50mm)
0 Remaining View Similar

In Stock

-
150

Please send RFQ , we will respond immediately.

Similar Products

Part Number FSR1013-102KL FSR1013-103KL   FSR1013-122KL   FSR1013-152KL
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Obsolete Obsolete Obsolete Obsolete
Type Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound
Material - Core Ferrite Ferrite Ferrite Ferrite
Inductance 1 mH 10 mH 1.2 mH 1.5 mH
Tolerance ±10% ±10% ±10% ±10%
Current Rating (Amps) 150 mA 45 mA 140 mA 130 mA
Current - Saturation (Isat) - - - -
Shielding Shielded Shielded Shielded Shielded
DC Resistance (DCR) 4Ohm Max 35Ohm Max 5Ohm Max 6Ohm Max
Q @ Freq 40 @ 252kHz 50 @ 79.6kHz 40 @ 252kHz 40 @ 252kHz
Frequency - Self Resonant 740kHz 240kHz 670kHz 500kHz
Ratings - - - -
Operating Temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
Inductance Frequency - Test 1 kHz 1 kHz 1 kHz 1 kHz
Features - - - -
Mounting Type Through Hole Through Hole Through Hole Through Hole
Package / Case Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder
Supplier Device Package - - - -
Size / Dimension 0.413" Dia (10.50mm) 0.413" Dia (10.50mm) 0.413" Dia (10.50mm) 0.413" Dia (10.50mm)
Height - Seated (Max) 0.532" (13.50mm) 0.532" (13.50mm) 0.532" (13.50mm) 0.532" (13.50mm)
