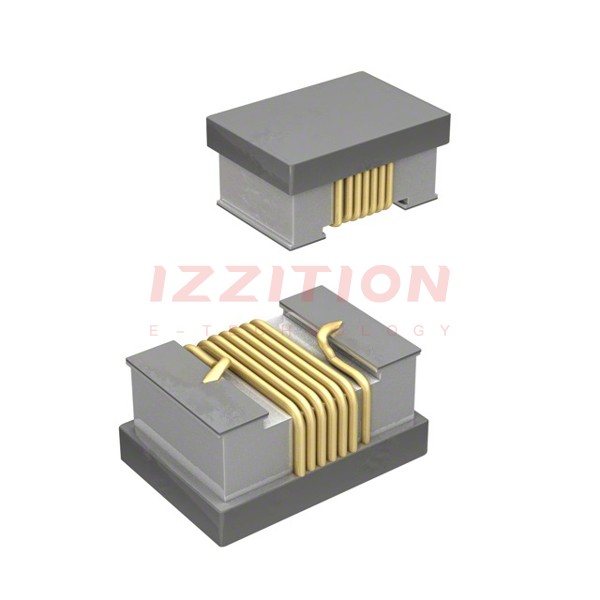

| Part Number | CW201212-3N3J | CW201212-3N9J |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ceramic | Ceramic |
| Inductance | 3.3 nH | 3.9 nH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 600 mA | 600 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 80mOhm | 60mOhm |
| Q @ Freq | 30 @ 1.5GHz | 60 @ 1GHz |
| Frequency - Self Resonant | 6GHz | 6GHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz | 250 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) |
