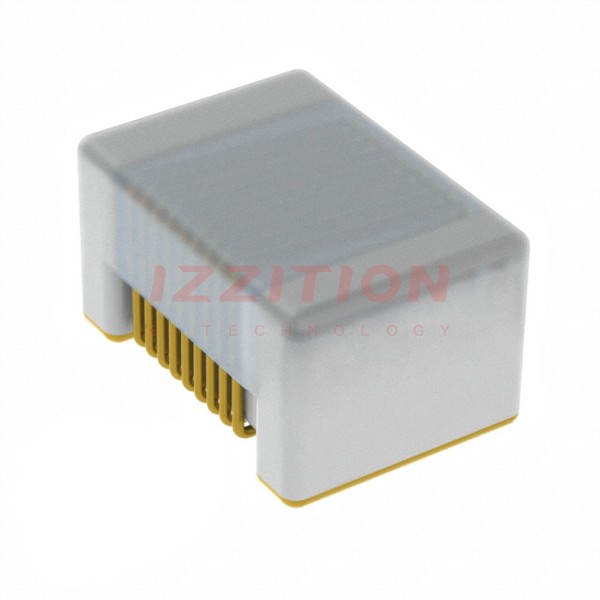

| Part Number | CW161009A-47NJ | CW161009A-27NJ | CW161009A-43NJ |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Ceramic | Ceramic | Ceramic |
| Inductance | 47 nH | 27 nH | 43 nH |
| Tolerance | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 600 mA | 600 mA | 600 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 230mOhm Max | 200mOhm Max | 220mOhm Max |
| Q @ Freq | 35 @ 200MHz | 35 @ 250MHz | 38 @ 250MHz |
| Frequency - Self Resonant | 2GHz | 2.8GHz | 2GHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 200 MHz | 250 MHz | 250 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 | 0603 |
| Size / Dimension | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.065" L x 0.045" W (1.65mm x 1.15mm) |
| Height - Seated (Max) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) |
