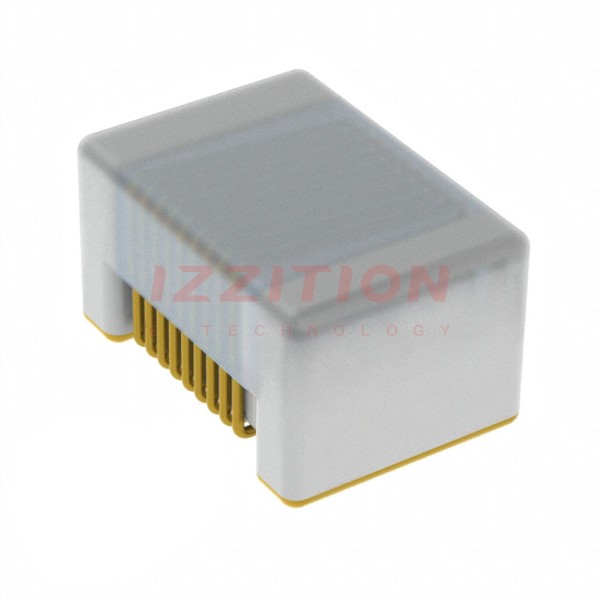

| Part Number | CW161009A-20NJ | CW161009A-27NJ | CW161009A-23NJ | CW161009A-30NJ | CW161009A-24NJ | CW161009A-22NJ | CW161009A-10NJ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - |
| Material - Core | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Inductance | 20 nH | 27 nH | 23 nH | 30 nH | 24 nH | 22 nH | 10 nH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 700 mA | 600 mA | 700 mA | 600 mA | 700 mA | 700 mA | 700 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 120mOhm Max | 200mOhm Max | 140mOhm Max | 144mOhm Max | 140mOhm Max | 150mOhm Max | 100mOhm Max |
| Q @ Freq | 35 @ 250MHz | 35 @ 250MHz | 38 @ 250MHz | 37 @ 250MHz | 35 @ 250MHz | 35 @ 250MHz | 31 @ 250MHz |
| Frequency - Self Resonant | 3.1GHz | 2.8GHz | 2.85GHz | 2.25GHz | 2.65GHz | 3GHz | 4.8GHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 250 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 |
| Size / Dimension | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.065" L x 0.045" W (1.65mm x 1.15mm) |
| Height - Seated (Max) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) |
