Please send RFQ , we will respond immediately.

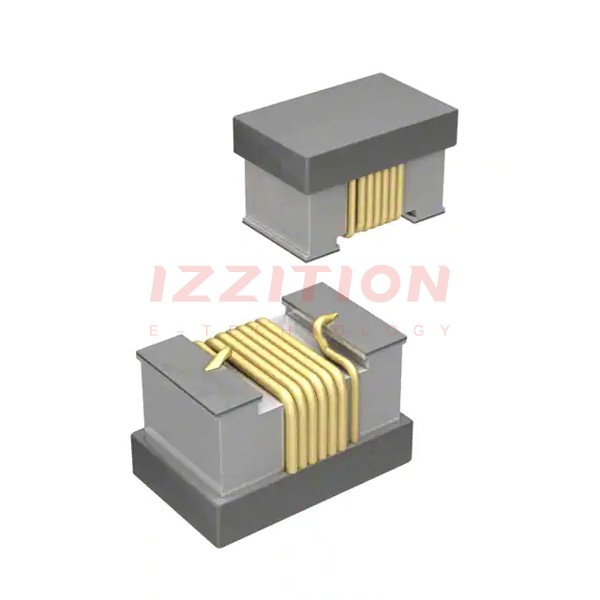

| Part Number | CW160808-R12J | CW160808-R22J | CW160808-R15J | CW160808-R18J | CW160808-R10J | CW160808-R12G |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Alumina | Alumina | Alumina | Alumina | Alumina | Alumina |
| Inductance | 120 nH | 220 nH | 150 nH | 180 nH | 100 nH | 120 nH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±2% |
| Current Rating (Amps) | 300 mA | 200 mA | 280 mA | 240 mA | 400 mA | 300 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 790mOhm | 1.9Ohm | 920mOhm | 1.25Ohm | 710mOhm | 790mOhm |
| Q @ Freq | 32 @ 250MHz | 25 @ 100MHz | 28 @ 150MHz | 25 @ 100MHz | 34 @ 250MHz | 32 @ 250MHz |
| Frequency - Self Resonant | 1.35GHz | 990MHz | 1.3GHz | 990MHz | 1.4GHz | 1.35GHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz | 100 MHz | 150 MHz | 100 MHz | 150 MHz | 150 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.065" L x 0.041" W (1.65mm x 1.05mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
